Product details
The Lenovo ThinkCentre neo 30s Gen 5 combines 8 GB of memory with 512GB of SSD storage for office documents, browser-based applications and day-to-day business work. This configuration is manufacturer part number 13DK001JGP.
Performance and memory
Intel Core i7-13620H, 10C (6P + 4E) / 16T, P-core up to 4.9GHz, E-core up to 3.6GHz, 24MB Intel Smart Cache. The installed memory is 1x 8GB SODIMM DDR5-5200. 512GB SSD M.2 2280 PCIe 4.0×4 NVMe provides solid-state storage for applications and working files. Integrated Intel UHD Graphics handles the graphics workload.
Memory expansion: Two DDR5 SODIMM slots, dual-channel capable. Up to 64GB DDR5-5200. Storage expansion: Up to two drives, 2x M.2 SSD
• M.2 SSD up to 1TB each.
Desk setup and expansion

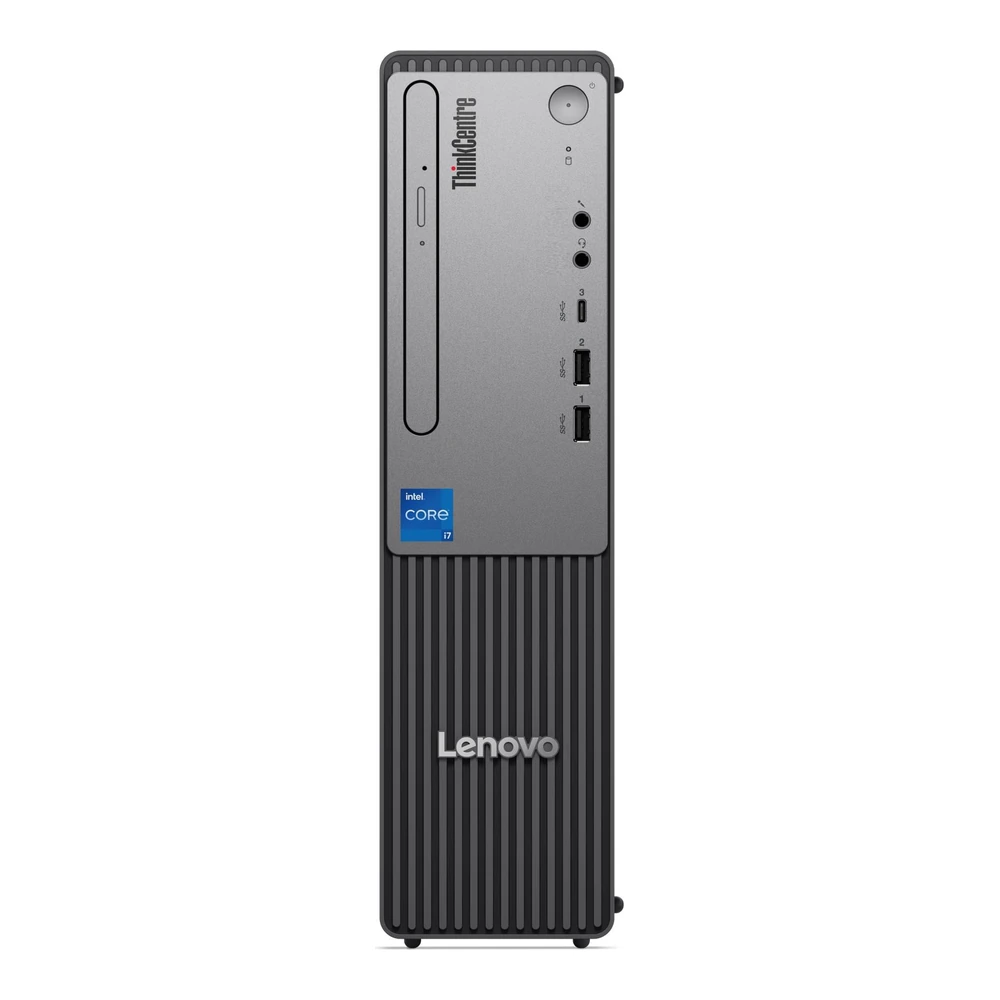

The SFF (8.2L) enclosure measures 92.5 x 291.7 x 339.5 mm (3.6 x 11.5 x 13.4 inches). One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Three M.2 slots (one for WLAN, two for SSD). The supplied keyboard is USB Calliope Keyboard, Black, English (UK); the supplied mouse is USB Calliope Mouse, Black. A monitor is sold separately.
Connectivity and setup

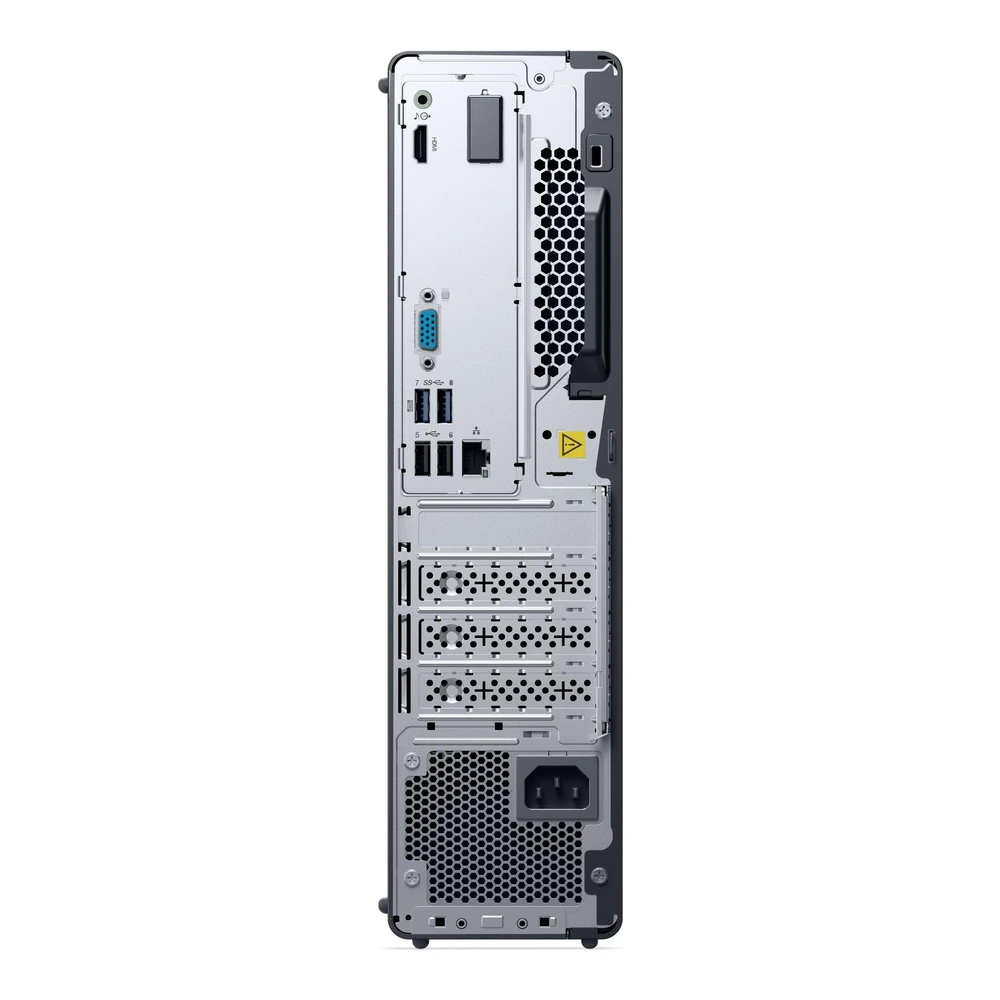

Wireless connectivity: Intel Wi-Fi 6 AX203, 802.11ax 2×2 + BT5.2. Wired networking: Integrated 100/1000M. Connection options include 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm). These connections support peripherals, external displays and wired office networking without requiring every accessory to share the same interface.
No operating system is preinstalled. Install a compatible operating system before use. Use the supplied 180W 85% for the main power connection. Keep external accessories and software requirements in mind when planning the final setup.
Included equipment
Computer, USB Calliope Keyboard, Black, English (UK), USB Calliope Mouse, Black.
