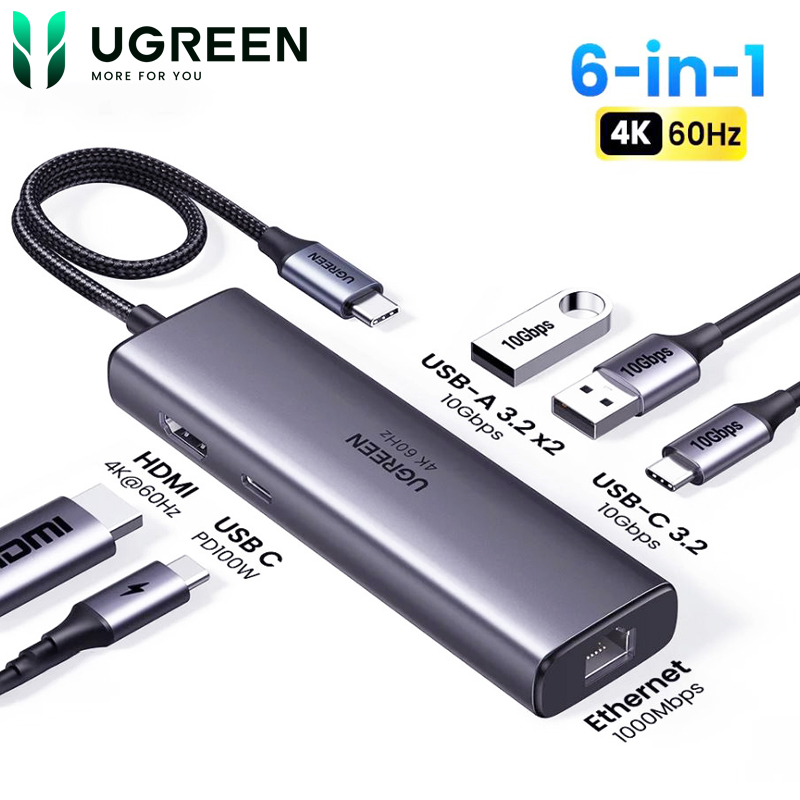

UGREEN 6-in-1 USB-C Hub
KSh 4,000
- Brand: UGREEN
- Model: CM512
- Part Number: UG-45000
- Number of Ports: 6-in-1
- HDMI Output: 4K@60Hz
- USB-A Ports: 2 × USB 3.2
- USB-C Data Port: 1 × USB-C 3.2
- Ethernet Port: Gigabit RJ45
- Power Delivery: 100W USB-C PD
Complete Your Setup
UGREEN 6-in-1 USB-C Hub Highlights
- 10 Gbps data transfer
- 4K at 60 Hz video output
- 6-in-1 USB-C hub hub type
- HDMI video outputs
- Port Configuration 2 USB-A data ports, 1 USB-C data port, HDMI, RJ45 Ethernet and USB-C PD input
- USB-C PD Charging PD 3.0, up to 100W input with a compatible 100W PD charger
Compare UGREEN 6-in-1 USB-C Hub with Similar Products
Compare UGREEN 6-in-1 USB-C Hub specs, features and price with similar USB hubs and alternatives.
Comparison full
0 spaces availableUSB Hub
| Specification | UGREEN 6-in-1 USB-C Hub | UGREEN USB-C to 4×USB 3.0 + HDMI Adapter | UGREEN 7-in-1 Multifunction USB-C Adapter | UGREEN 6-in-1 Multifunction Adapter Type-C to 3× USB 3.0 + 4K HDMI + SD/TF Card Reader |
|---|---|---|---|---|
| Brand / Model | UGREEN CM512 / 45000 | UGREEN CM417 | UGREEN Revodok 1071 (15214) | UGREEN 20956A |
| Hub Type | 6-in-1 USB-C hub | 5-in-1 USB-C hub | 7-in-1 USB-C hub | 6-in-1 USB-C hub |
| Host Connection | USB-C | USB-C; attached 200mm cable | USB-C | USB-C |
| Port Configuration | 2 USB-A data ports, 1 USB-C data port, HDMI, RJ45 Ethernet and USB-C PD input | 4 × USB-A 3.0; 1 × HDMI | 7 ports: HDMI, USB-C PD charging, USB-C data, 2 USB-A data ports, SD and microSD/TF slots | 3 USB-A data ports, 1 HDMI output, 1 SD slot and 1 microSD/TF slot |
Data
| Specification | UGREEN 6-in-1 USB-C Hub | UGREEN USB-C to 4×USB 3.0 + HDMI Adapter | UGREEN 7-in-1 Multifunction USB-C Adapter | UGREEN 6-in-1 Multifunction Adapter Type-C to 3× USB 3.0 + 4K HDMI + SD/TF Card Reader |
|---|---|---|---|---|
| USB Data | USB 3.2 data ports: up to 10Gbps interface speed; actual throughput depends on the host and devices | Up to 5Gbps shared USB interface | USB-C and 2 USB-A data ports: up to 5Gbps | USB 3.0 data ports: up to 5Gbps interface speed |
| Card Reader | None | None | SD and microSD/TF card slots | SD and microSD/TF; UHS-I; SD 3.0 up to 104MB/s; simultaneous access to both card slots |
| Ethernet | RJ45 Ethernet: auto-negotiation at 10/100/1000Mbps | None | None | None |
Display
| Specification | UGREEN 6-in-1 USB-C Hub | UGREEN USB-C to 4×USB 3.0 + HDMI Adapter | UGREEN 7-in-1 Multifunction USB-C Adapter | UGREEN 6-in-1 Multifunction Adapter Type-C to 3× USB 3.0 + 4K HDMI + SD/TF Card Reader |
|---|---|---|---|---|
| Video Outputs | HDMI | 1 × HDMI | 1 HDMI 1.4 output | HDMI |
| Maximum Display Output | Up to 4K at 60Hz with compatible host equipment | Up to 4K at 30Hz | Up to 4K at 30Hz | Up to 4K; maximum refresh rate remains unverified |
| Multi-Monitor Support | Not specified | 1 external display | 1 external monitor | Not specified |
Power
| Specification | UGREEN 6-in-1 USB-C Hub | UGREEN USB-C to 4×USB 3.0 + HDMI Adapter | UGREEN 7-in-1 Multifunction USB-C Adapter | UGREEN 6-in-1 Multifunction Adapter Type-C to 3× USB 3.0 + 4K HDMI + SD/TF Card Reader |
|---|---|---|---|---|
| USB-C PD Charging | PD 3.0, up to 100W input with a compatible 100W PD charger; the separate host-delivered power limit is unverified | None | PD input: up to 100W; host output: up to 95W | None |
| Power Requirements / Notes | Not specified | USB bus-powered | 5W reserved for hub; separate USB-C PD charger required for host charging | Not specified |
Audio & Features
| Specification | UGREEN 6-in-1 USB-C Hub | UGREEN USB-C to 4×USB 3.0 + HDMI Adapter | UGREEN 7-in-1 Multifunction USB-C Adapter | UGREEN 6-in-1 Multifunction Adapter Type-C to 3× USB 3.0 + 4K HDMI + SD/TF Card Reader |
|---|---|---|---|---|
| Audio / Hub Features | Surge protection, reverse-current protection, current limiting and charging sequence control | Plug and play; HDMI digital audio | Not specified | Over-current, over-voltage, short-circuit and high-temperature protection |
Compatibility & Physical
| Specification | UGREEN 6-in-1 USB-C Hub | UGREEN USB-C to 4×USB 3.0 + HDMI Adapter | UGREEN 7-in-1 Multifunction USB-C Adapter | UGREEN 6-in-1 Multifunction Adapter Type-C to 3× USB 3.0 + 4K HDMI + SD/TF Card Reader |
|---|---|---|---|---|
| Design / Dimensions / Weight | Housing: 122 × 34 × 15mm; attached cable approximately 20cm | Aluminium alloy and ABS; 120 × 26.5 × 16 mm; 52.27 g | Not specified | Not specified |
| Compatibility / Notes | Not specified | Windows, macOS, Linux, Android and iPadOS; HDMI requires USB-C DisplayPort Alt Mode | Compatible USB hosts; individual functions depend on host hardware and operating system | Windows, macOS and Linux |
| In the Box | Not specified | Hub with attached USB-C cable | Not specified | Not specified |
General
| Specification | UGREEN 6-in-1 USB-C Hub | UGREEN USB-C to 4×USB 3.0 + HDMI Adapter | UGREEN 7-in-1 Multifunction USB-C Adapter | UGREEN 6-in-1 Multifunction Adapter Type-C to 3× USB 3.0 + 4K HDMI + SD/TF Card Reader |
|---|---|---|---|---|
| Brand | UGREEN | UGREEN | UGREEN | UGREEN |
Specs
UGREEN 6-in-1 USB-C Hub specifications
USB Hub
| Brand / Model | UGREEN CM512 / 45000 |
|---|---|
| Hub Type | 6-in-1 USB-C hub |
| Host Connection | USB-C |
| Port Configuration | 2 USB-A data ports, 1 USB-C data port, HDMI, RJ45 Ethernet and USB-C PD input |
Data
| USB Data | USB 3.2 data ports: up to 10Gbps interface speed; actual throughput depends on the host and devices |
|---|---|
| Card Reader | None |
| Ethernet | RJ45 Ethernet: auto-negotiation at 10/100/1000Mbps |
Display
| Video Outputs | HDMI |
|---|---|
| Maximum Display Output | Up to 4K at 60Hz with compatible host equipment |
Power
| USB-C PD Charging | PD 3.0, up to 100W input with a compatible 100W PD charger; the separate host-delivered power limit is unverified |
|---|
Audio & Features
| Audio / Hub Features | Surge protection, reverse-current protection, current limiting and charging sequence control |
|---|
Compatibility & Physical
| Design / Dimensions / Weight | Housing: 122 × 34 × 15mm; attached cable approximately 20cm |
|---|
