Product details

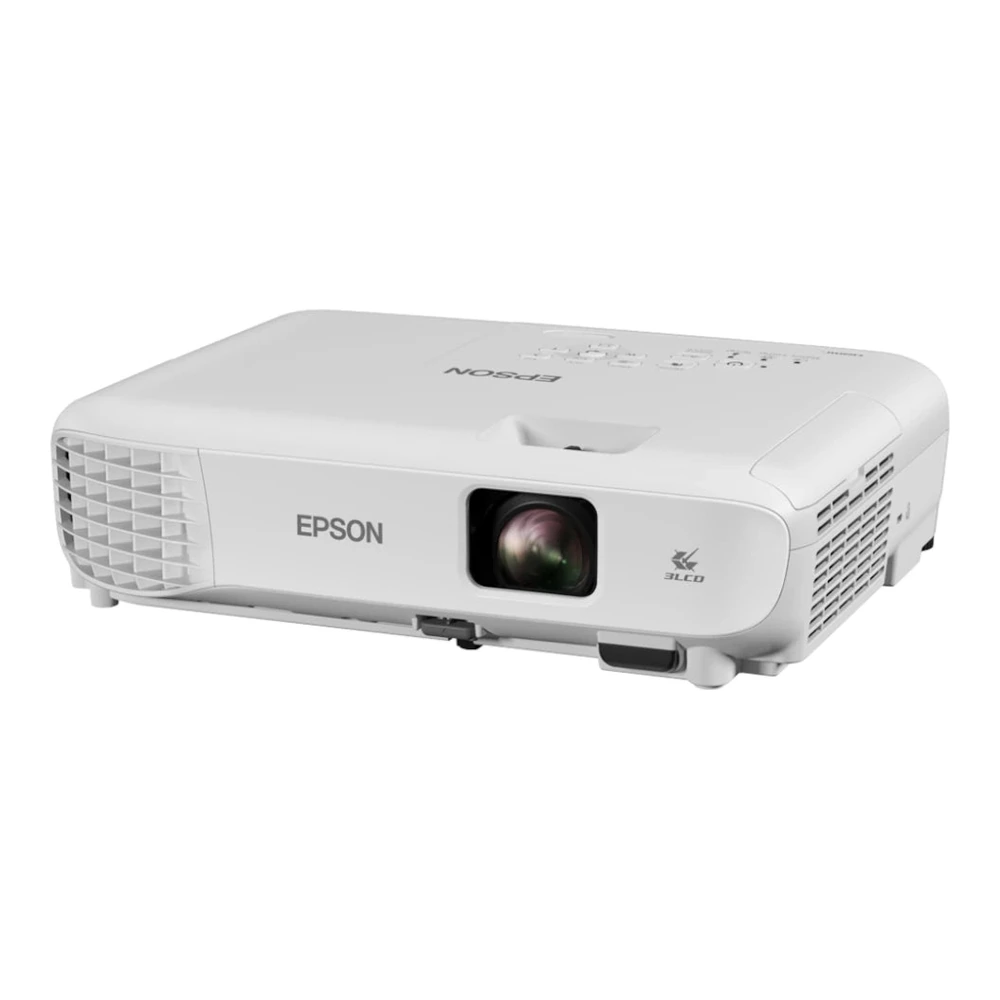

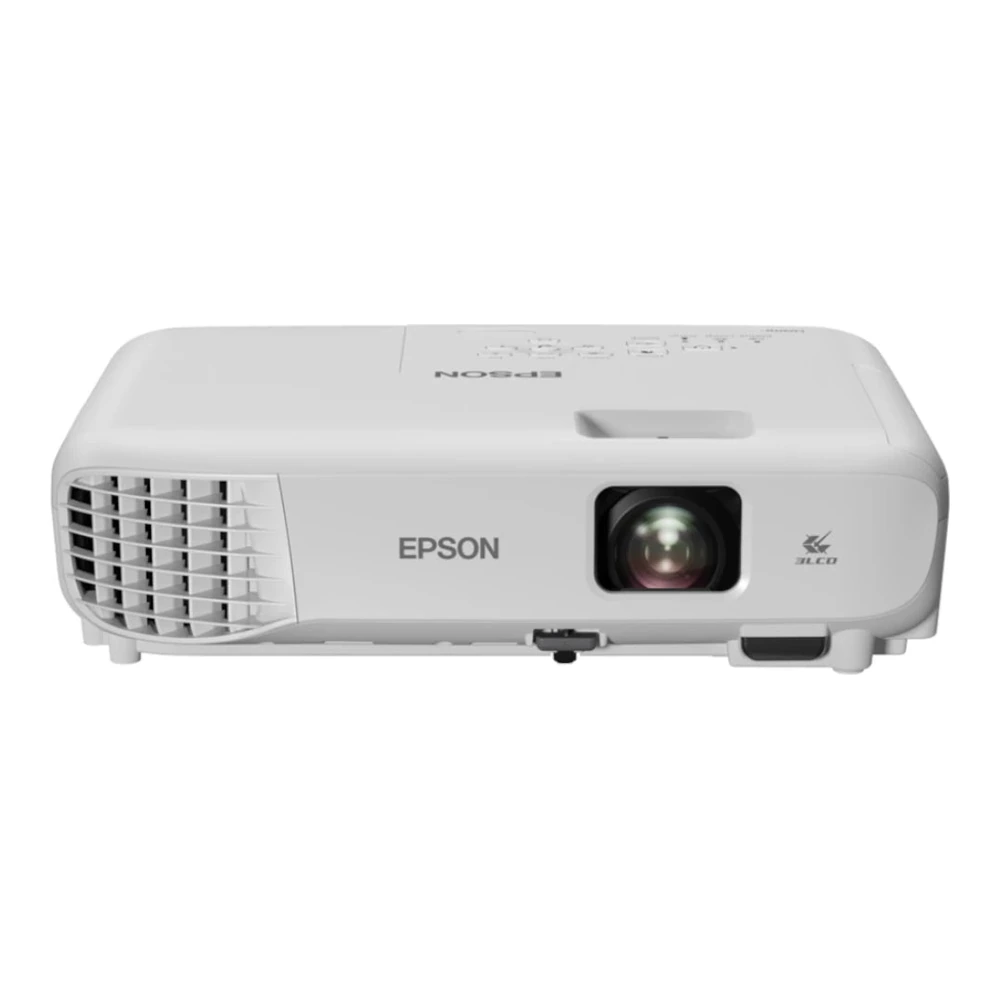

The Epson EB-X49 is a portable 3LCD projector for classroom and office presentations. Its native XGA resolution and 3600-lumen white and colour output suit documents, slides and supported video sources.
Projection performance
The three-panel LCD system produces a native 1024 × 768 image in a 4:3 aspect ratio. Epson rates both colour and white light output at 3600 lumens, with 2400 lumens in economy mode. The specified contrast ratio is 16,000:1. Use content and source settings appropriate to the native resolution for clear text and slide graphics. Supported projected image sizes range from 30 to 300 inches.
Positioning the image

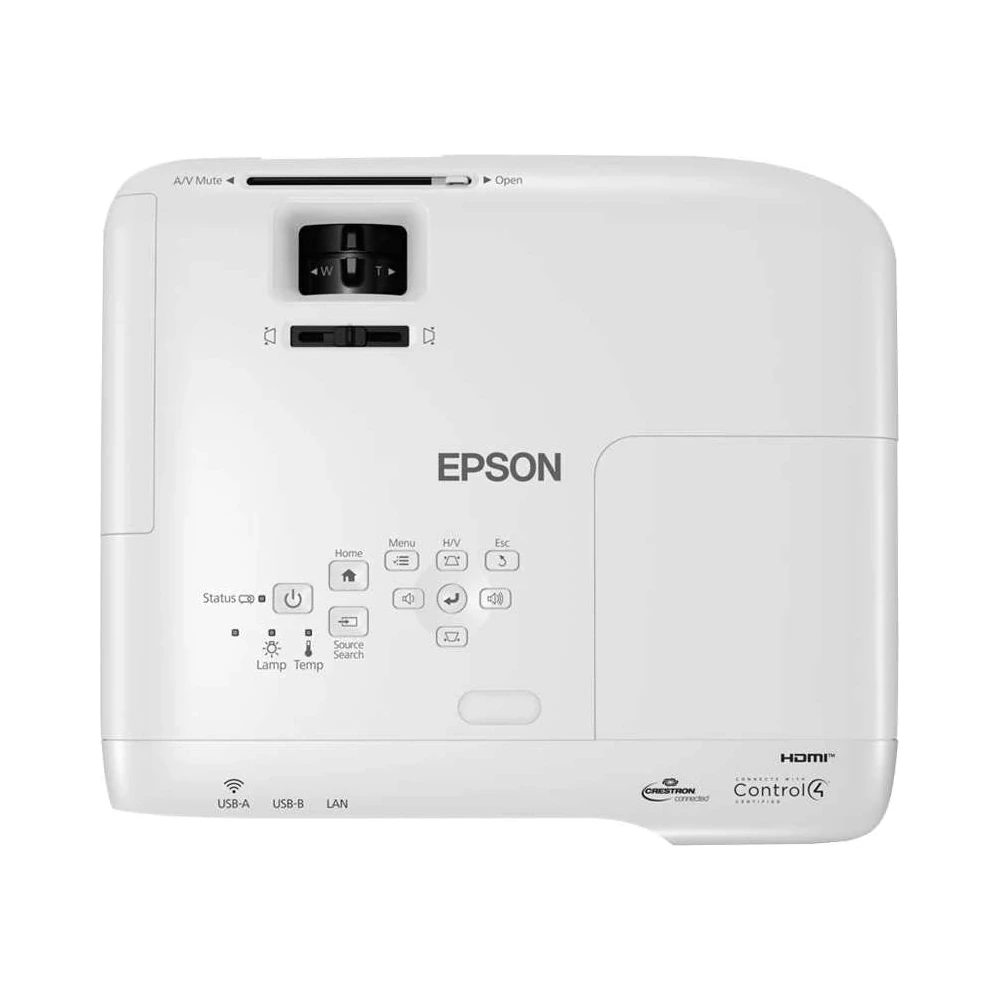

The manual 1.2× optical zoom and focus controls help match the image to the screen. The throw ratio ranges from 1.48 to 1.77:1, so available screen width and room depth determine placement. Automatic vertical and manual horizontal keystone adjustment help correct suitable installation angles. Place the projector securely and leave the ventilation paths unobstructed.
Connecting presentation sources

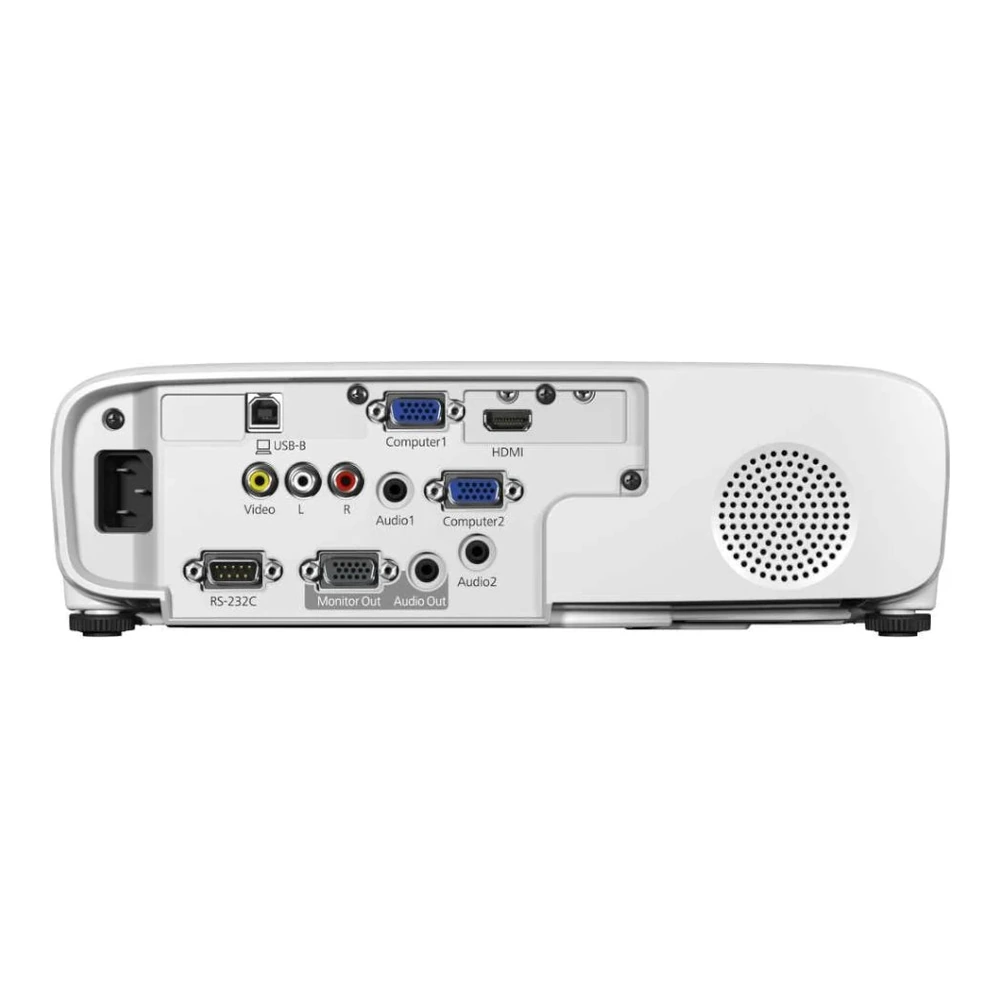

HDMI connects compatible digital sources. VGA inputs and a VGA output support suitable legacy computer setups. USB-A, USB-B, composite video, audio connections, RS-232C and Ethernet provide additional supported workflows. A 5W speaker handles basic presentation sound. Wireless projection requires the optional ELPAP11 adapter rather than being built into the standard configuration.
Power and maintenance
The 210W UHE lamp is rated for up to 6000 hours in normal mode or 12000 hours in economy mode. Operating conditions affect lamp life. The body measures 302 × 249 × 87 mm and weighs 2.7 kg. AC input supports 100–240V at 50/60Hz. Typical specified consumption is 286W in normal mode and 180W in economy mode.
