For Pros

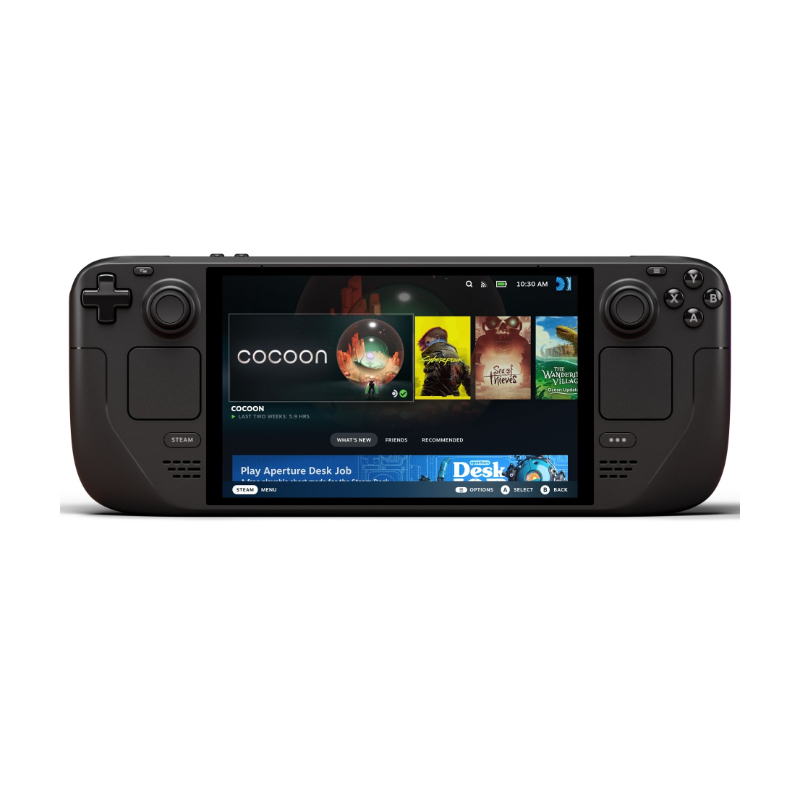

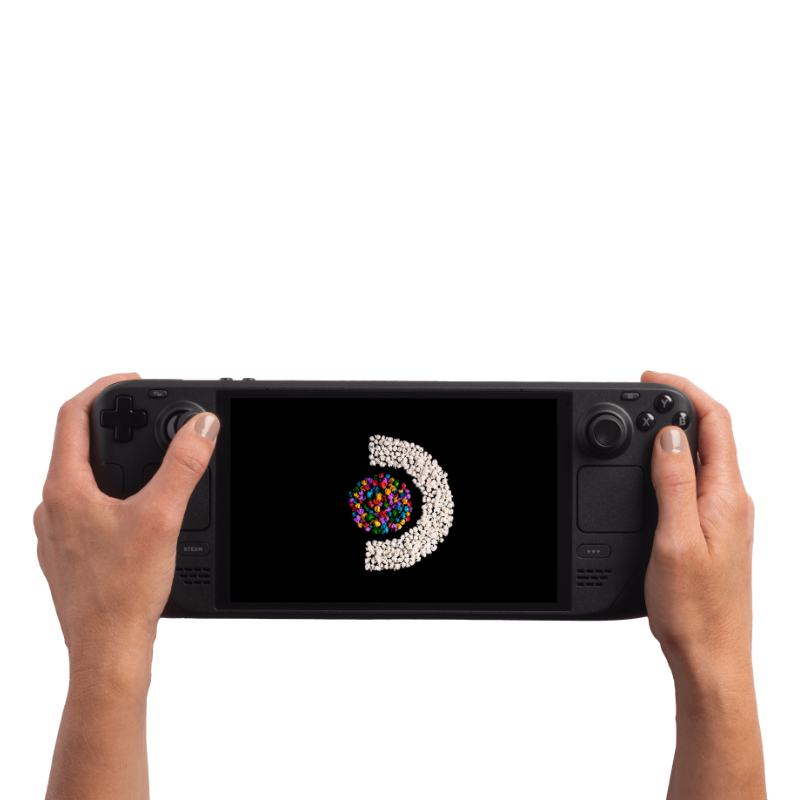

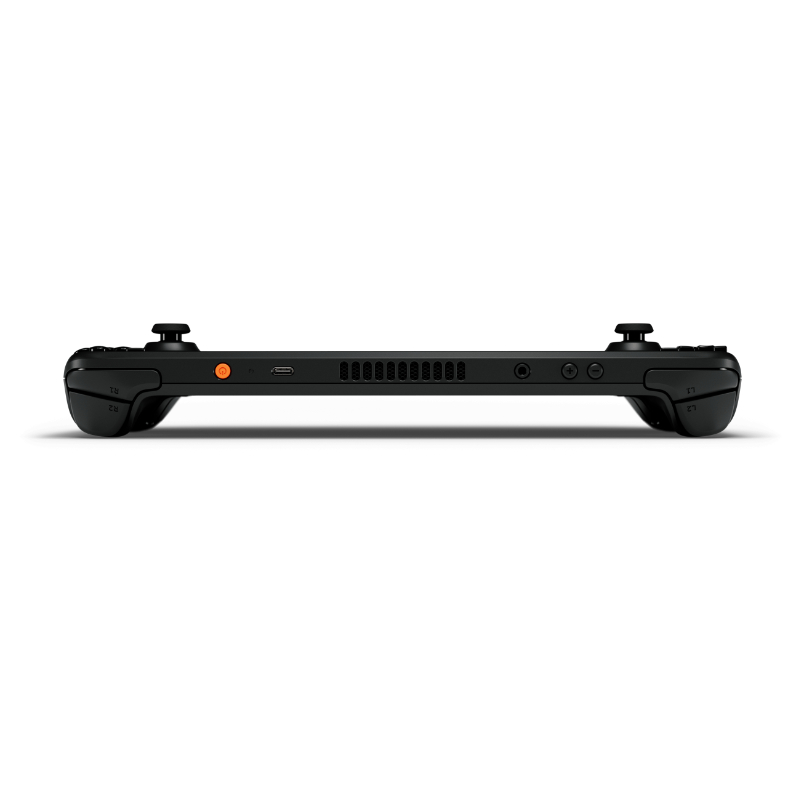

Steam Deck OLED
- Display: 7.4-inch HDR OLED, 1280 x 800 resolution, 90Hz refresh rate
- Processor: Custom AMD Aerith APU (Zen 2 4-core/8-thread CPU, RDNA 2 GPU)
- RAM: 16GB LPDDR5-6400
- Storage: 512GB or 1TB NVMe SSD
- Graphics: AMD RDNA 2 (1.6 TFLOPs)
- Battery: 50Wh (3-12 hours gameplay)
- Operating System: SteamOS 3.0 (Linux-based)
- Build: Plastic chassis with carrying case, 640g weight
- Connectivity: Wi-Fi 6E, Bluetooth 5.3, USB-C, microSD slot
- Audio: Dual front-firing speakers with improved bass
Complete Your Setup
View all
Steam Deck OLED Highlights
- PC handheld PC game libraries such as Steam
- Up to 1TB storage, with 16GB RAM
- 8K video output
- 4K at 120 Hz video output
- 640 g weight
- Up to 12 hours per charge
Compare Steam Deck OLED with Similar Products
Compare Steam Deck OLED specs, features and price with similar products and alternatives.
Add to comparison
1 space availableGeneral
| Specification | Steam Deck OLED | ROG Xbox Ally AMD Ryzen Z2 | Lenovo Legion Go Gen 2 |
|---|---|---|---|
| Brand | Not specified | ASUS | Lenovo |
| Model | Steam Deck OLED | ROG Xbox Ally (RC73YA-NH002W) | Legion Go (Gen 2) |
| Product type | Handheld gaming PC | Handheld gaming PC | Handheld gaming PC |
Performance
| Specification | Steam Deck OLED | ROG Xbox Ally AMD Ryzen Z2 | Lenovo Legion Go Gen 2 |
|---|---|---|---|
| Processor | 6nm AMD APU; Zen 2 CPU, four cores/eight threads, 2.4–3.5GHz | AMD Ryzen Z2 A; four cores/eight threads; 2.8GHz base, up to 3.8GHz boost; 6MB cache | Ryzen |
| Graphics | AMD RDNA 2 GPU; eight compute units at 1.6GHz, 1.6 TFLOPS FP32 | AMD Radeon graphics | Integrated AMD Radeon graphics with shared memory |
| Storage expansion | UHS-I microSD slot supporting SD, SDHC and SDXC | UHS-II microSD reader supporting SD, SDHC and SDXC | microSD card reader |
Display & Connectivity
| Specification | Steam Deck OLED | ROG Xbox Ally AMD Ryzen Z2 | Lenovo Legion Go Gen 2 |
|---|---|---|---|
| Video output and refresh rate | DisplayPort over USB-C; manufacturer maximum up to 8K at 60Hz or 4K at 120Hz with compatible equipment | Not specified | Not specified |
| Integrated display | 7.4-inch HDR OLED touchscreen; 1280 × 800; up to 90Hz; 1000-nit HDR peak and 600-nit SDR brightness | 7-inch 1920 × 1080 IPS-level ten-point touchscreen; 120Hz; 500-nit brightness; AMD FreeSync Premium; Gorilla Glass Victus/DXC | 8.8-inch OLED multi-touch screen; 1920 × 1200; 144Hz; 500-nit typical SDR and 1100-nit peak HDR brightness; 100% DCI-P3; Gorilla Glass 3 |
| Ports | USB-C with USB 3 Gen 2 and DisplayPort; 3.5mm headphone/headset jack; microSD slot | Two USB-C USB 3.2 Gen 2 ports with DisplayPort/PD; one 3.5mm combo audio jack; microSD slot | Not specified |
| Wi-Fi and Bluetooth | Tri-band 2×2 Wi-Fi 6E; Bluetooth 5.3 | Tri-band Wi-Fi 6E 2×2; manufacturer lists Bluetooth 5.4, which may vary with installed OS version | Not specified |
| HDR support | Not specified | Not specified | DisplayHDR True Black 1000 certified panel |
Gaming & Power
| Specification | Steam Deck OLED | ROG Xbox Ally AMD Ryzen Z2 | Lenovo Legion Go Gen 2 |
|---|---|---|---|
| Controller support | Integrated sticks, D-pad, triggers, bumpers, four assignable grip buttons, two haptic trackpads and six-axis IMU | Integrated sticks, D-pad, ABXY buttons, Hall-effect triggers, bumpers, two assignable grip buttons, haptics and six-axis IMU | Detachable controllers; sticks, D-pad, ABXY, triggers/bumpers, function buttons and a right-controller touchpad; FPS mode uses the right controller as a mouse |
| Power supply | USB-C PD 3.0; manufacturer-specified 45W power supply | USB-C charging; manufacturer specifies a 65W USB-C adapter, with regional inclusion varying | USB-C charging; regional configurations may include a 65W USB-C PD 3.0 adapter or no adapter |
Design
| Specification | Steam Deck OLED | ROG Xbox Ally AMD Ryzen Z2 | Lenovo Legion Go Gen 2 |
|---|---|---|---|
| Dimensions | 298 × 117 × 49 mm | 29.0 × 12.1 × 2.75–5.09 cm | Console: 206 × 136.7 × 22.95 mm; with controllers: 295.6 × 136.7 × 42.25 mm |
| Weight | Approximately 640 g | 670 g | Around 920 g with controllers; manufacturer estimate |
Memory & Storage
| Specification | Steam Deck OLED | ROG Xbox Ally AMD Ryzen Z2 | Lenovo Legion Go Gen 2 |
|---|---|---|---|
| Memory | 16GB onboard LPDDR5 RAM; 6400MT/s | 16GB onboard LPDDR5; 6400MT/s dual channel | 32GB |
| Internal storage | 1TB, 512GB | 512GB PCIe 4.0 NVMe M.2 2280 SSD | 1TB, 2TB |
Battery & Charging
| Specification | Steam Deck OLED | ROG Xbox Ally AMD Ryzen Z2 | Lenovo Legion Go Gen 2 |
|---|---|---|---|
| Battery and runtime | 50Wh battery; manufacturer estimate of 3–12 hours of gameplay, depending on use | 60Wh four-cell lithium-ion battery | 74Wh rechargeable lithium-ion battery; manufacturer Rapid Charge claim up to 50% in 30 minutes under supported conditions |
Software
| Specification | Steam Deck OLED | ROG Xbox Ally AMD Ryzen Z2 | Lenovo Legion Go Gen 2 |
|---|---|---|---|
| System software | SteamOS 3, based on Arch Linux; KDE Plasma desktop | Windows 11 Home | Not specified |
Specs
Steam Deck OLED specifications
General
| Brand | Valve |
|---|---|
| Model | Steam Deck OLED |
| Product type | Handheld gaming PC |
Performance
| Processor | 6nm AMD APU; Zen 2 CPU, four cores/eight threads, 2.4–3.5GHz |
|---|---|
| Graphics | AMD RDNA 2 GPU; eight compute units at 1.6GHz, 1.6 TFLOPS FP32 |
| Memory | 16GB onboard LPDDR5 RAM; 6400MT/s |
| Internal storage | 1TB, 512GB |
| Storage expansion | UHS-I microSD slot supporting SD, SDHC and SDXC |
| System software | SteamOS 3, based on Arch Linux; KDE Plasma desktop |
Display & Connectivity
| Video output and refresh rate | DisplayPort over USB-C; manufacturer maximum up to 8K at 60Hz or 4K at 120Hz with compatible equipment |
|---|---|
| Integrated display | 7.4-inch HDR OLED touchscreen; 1280 × 800; up to 90Hz; 1000-nit HDR peak and 600-nit SDR brightness |
| Ports | USB-C with USB 3 Gen 2 and DisplayPort; 3.5mm headphone/headset jack; microSD slot |
| Wi-Fi and Bluetooth | Tri-band 2×2 Wi-Fi 6E; Bluetooth 5.3 |
Gaming & Power
| Controller support | Integrated sticks, D-pad, triggers, bumpers, four assignable grip buttons, two haptic trackpads and six-axis IMU |
|---|---|
| Battery and runtime | 50Wh battery; manufacturer estimate of 3–12 hours of gameplay, depending on use |
| Power supply | USB-C PD 3.0; manufacturer-specified 45W power supply |
Design & Package
| Dimensions | 298 × 117 × 49 mm |
|---|---|
| Weight | Approximately 640 g |
