Out of stock
Brand: UGREEN
UGREEN 12-in-1 8K Universal Docking Station
KSh 28,000
- Model: UGREEN CM555 (Silver)
- Primary Video Output: 1x HDMI (8K @ 30Hz)
- Secondary Video Outputs: 1x HDMI (4K @ 60Hz), 1x DisplayPort (4K @ 60Hz)
- Power Delivery: 1x USB-C PD 3.0 (100W Max)
- High-Speed Data: 1x USB-C 3.1 (10Gbps), 1x USB-A 3.1 (10Gbps)
- Standard Data: 2x USB-A 3.0 (5Gbps)
- Network: 1x RJ45 Gigabit Ethernet (10/100/1000Mbps)
- Storage Expansion: SD and TF Card Slots (104MB/s Max)
- Audio: 1x 3.5mm AUX Port
UGREEN 12-in-1 8K Universal Docking Station Highlights
- 8K video output
- 4K at 60 Hz video output
- USB-C multifunction docking station hub type
- SD and microSD/TF card reader
- RJ45 ethernet
- USB Data one USB-A and one USB-C up to 10 Gbit/s
Compare UGREEN 12-in-1 8K Universal Docking Station with Similar Products
Compare UGREEN 12-in-1 8K Universal Docking Station specs, features and price with similar USB hubs and alternatives.
Comparison full
0 spaces availableUSB Hub
| Specification | UGREEN 12-in-1 8K Universal Docking Station | Apple USB Type-C VGA Multiport Adapter | Apple USB Type-C Digital AV Multiport Adapter | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station |
|---|---|---|---|---|
| Brand / Model | UGREEN 12-in-1 8K Universal Docking Station | Apple USB-C VGA Multiport Adapter | Apple USB-C Digital AV Multiport Adapter | UGREEN Revodok Pro 313 (15978) |
| Hub Type | USB-C multifunction docking station | USB-C multiport adapter for VGA display, USB-A device and laptop charging | USB-C display and USB multiport adapter | 13-in-1 USB-C docking hub |
| Host Connection | USB-C; video-capable host port required for the 8K HDMI connection | USB-C host connector for a Mac with USB-C or Thunderbolt 3 (USB-C) | USB-C | USB-C |
| Port Configuration | Two HDMI, one DisplayPort, three USB-A data ports, one USB-C data port, one USB-C PD input, RJ45, SD, microSD/TF and 3.5 mm audio | VGA, USB-A and USB-C charging ports; all three can operate simultaneously | HDMI, USB-A and USB-C charging ports | 13 ports: 2 HDMI, DisplayPort, USB-C PD charging, USB-C data, 4 USB-A data ports, Gigabit Ethernet, SD and microSD/TF slots and 3.5mm audio |
Data
| Specification | UGREEN 12-in-1 8K Universal Docking Station | Apple USB Type-C VGA Multiport Adapter | Apple USB Type-C Digital AV Multiport Adapter | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station |
|---|---|---|---|---|
| USB Data | One USB-A and one USB-C up to 10 Gbit/s; two USB-A up to 5 Gbit/s (theoretical rates) | USB-A data transfer up to 5Gbps (USB 3.1 Gen 1) | Not specified | USB-C and 2 USB-A data ports: up to 10Gbps; 2 additional USB-A ports: up to 5Gbps |
| Card Reader | SD and microSD/TF; SD 3.0, theoretical transfer rate up to 104 MB/s | Not specified | Not specified | SD and microSD/TF card slots |
| Ethernet | RJ45; automatic 10 / 100 / 1000 Mbit/s negotiation | Not specified | Not specified | Gigabit Ethernet |
Display
| Specification | UGREEN 12-in-1 8K Universal Docking Station | Apple USB Type-C VGA Multiport Adapter | Apple USB Type-C Digital AV Multiport Adapter | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station |
|---|---|---|---|---|
| Video Outputs | HDMI 1 up to 4K at 60 Hz; HDMI 2 up to 8K at 30 Hz; DisplayPort up to 4K at 60 Hz | VGA display output | HDMI output | 2 HDMI 2.0 and 1 DisplayPort 1.4 outputs |
| Maximum Display Output | HDMI 2 reaches up to 8K at 30 Hz on compatible Windows hosts; macOS HDMI 2 output is limited to 4K at 60 Hz | Up to 1920 × 1080 at 60Hz | Not specified | Up to 4K at 60Hz |
| Multi-Monitor Support | Not specified | Not specified | Not specified | Up to 3 external displays |
Power
| Specification | UGREEN 12-in-1 8K Universal Docking Station | Apple USB Type-C VGA Multiport Adapter | Apple USB Type-C Digital AV Multiport Adapter | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station |
|---|---|---|---|---|
| USB-C PD Charging | 1x USB-C PD 3.0 (100W Max) | USB-C pass-through charging up to 60W; this port does not support data transfer or video | USB-C port for charging the connected Mac laptop or iPad | 100W USB-C PD port; up to 85W pass-through charging |
| Power Requirements / Notes | External USB-C Power Delivery supply recommended for high-power peripherals; compatible host must accept USB-C charging | Draws power from the connected Mac even while it sleeps; unplug when the Mac is not connected to AC power to reduce battery drain | Not specified | Separate compatible USB-C PD charger required for laptop charging |
Audio & Features
| Specification | UGREEN 12-in-1 8K Universal Docking Station | Apple USB Type-C VGA Multiport Adapter | Apple USB Type-C Digital AV Multiport Adapter | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station |
|---|---|---|---|---|
| Audio / Hub Features | 3.5 mm earphone and microphone combo jack | Not specified | HDCP-compliant HDMI connection; all three ports can be used simultaneously | 3.5mm audio port |
Compatibility & Physical
| Specification | UGREEN 12-in-1 8K Universal Docking Station | Apple USB Type-C VGA Multiport Adapter | Apple USB Type-C Digital AV Multiport Adapter | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station |
|---|---|---|---|---|
| Compatibility / Notes | Windows and macOS; DisplayLink driver required for the HDMI 1 and DisplayPort outputs. Host video support required for HDMI 2 | Mac with a USB-C or Thunderbolt 3 (USB-C) port and a VGA display. For best charging on 15/16-inch MacBook Pro, connect its power adapter directly. Incompatible with G-DRIVE mobile USB 3.0 (HF4F2VC/A) and Apple USB SuperDrive manufactured before autumn 2010. | Compatible Macs with Thunderbolt 4, Thunderbolt 3 or USB-C, and iPads with Thunderbolt or USB-C | Full-function USB-C host with DisplayPort Alt Mode and USB Power Delivery; display layout depends on host OS |
| Design / Dimensions / Weight | Not specified | Not specified | Not specified | 145 x 70 x 20mm; 305.6g |
General
| Specification | UGREEN 12-in-1 8K Universal Docking Station | Apple USB Type-C VGA Multiport Adapter | Apple USB Type-C Digital AV Multiport Adapter | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station |
|---|---|---|---|---|
| Brand | UGREEN | Apple | Apple | UGREEN |
Specs
UGREEN 12-in-1 8K Universal Docking Station specifications
USB Hub
| Brand / Model | UGREEN 12-in-1 8K Universal Docking Station |
|---|---|
| Hub Type | USB-C multifunction docking station |
| Host Connection | USB-C; video-capable host port required for the 8K HDMI connection |

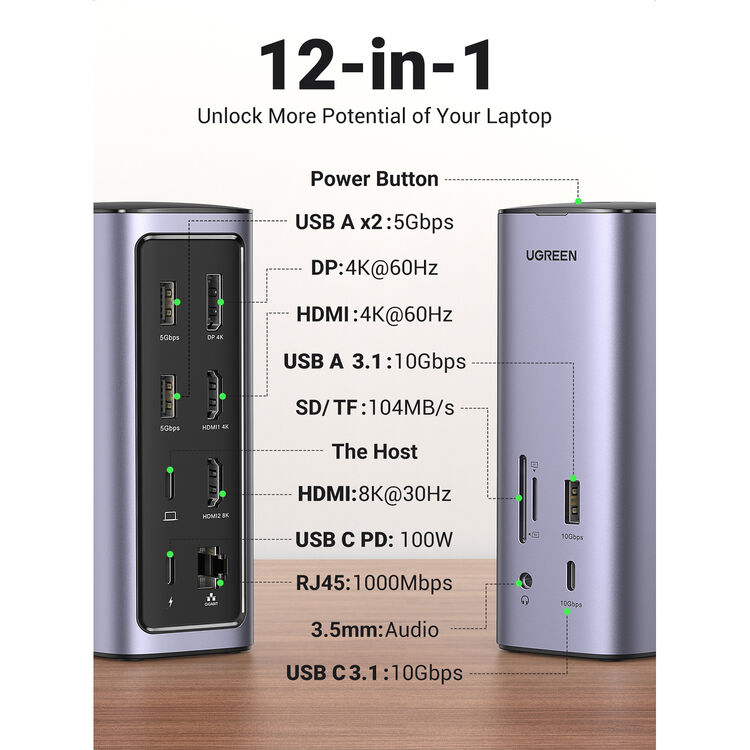

| Port Configuration | Two HDMI, one DisplayPort, three USB-A data ports, one USB-C data port, one USB-C PD input, RJ45, SD, microSD/TF and 3.5 mm audio |
Data
| USB Data | One USB-A and one USB-C up to 10 Gbit/s; two USB-A up to 5 Gbit/s (theoretical rates) |
|---|---|
| Card Reader | SD and microSD/TF; SD 3.0, theoretical transfer rate up to 104 MB/s |
| Ethernet | RJ45; automatic 10 / 100 / 1000 Mbit/s negotiation |
Display
| Video Outputs | HDMI 1 up to 4K at 60 Hz; HDMI 2 up to 8K at 30 Hz; DisplayPort up to 4K at 60 Hz |
|---|---|
| Maximum Display Output | HDMI 2 reaches up to 8K at 30 Hz on compatible Windows hosts; macOS HDMI 2 output is limited to 4K at 60 Hz |
Power
| USB-C PD Charging | 1x USB-C PD 3.0 (100W Max) |
|---|---|
| Power Requirements / Notes | External USB-C Power Delivery supply recommended for high-power peripherals; compatible host must accept USB-C charging |
Audio & Features
| Audio / Hub Features | 3.5 mm earphone and microphone combo jack |
|---|
Compatibility & Physical
| Compatibility / Notes | Windows and macOS; DisplayLink driver required for the HDMI 1 and DisplayPort outputs. Host video support required for HDMI 2 |
|---|
