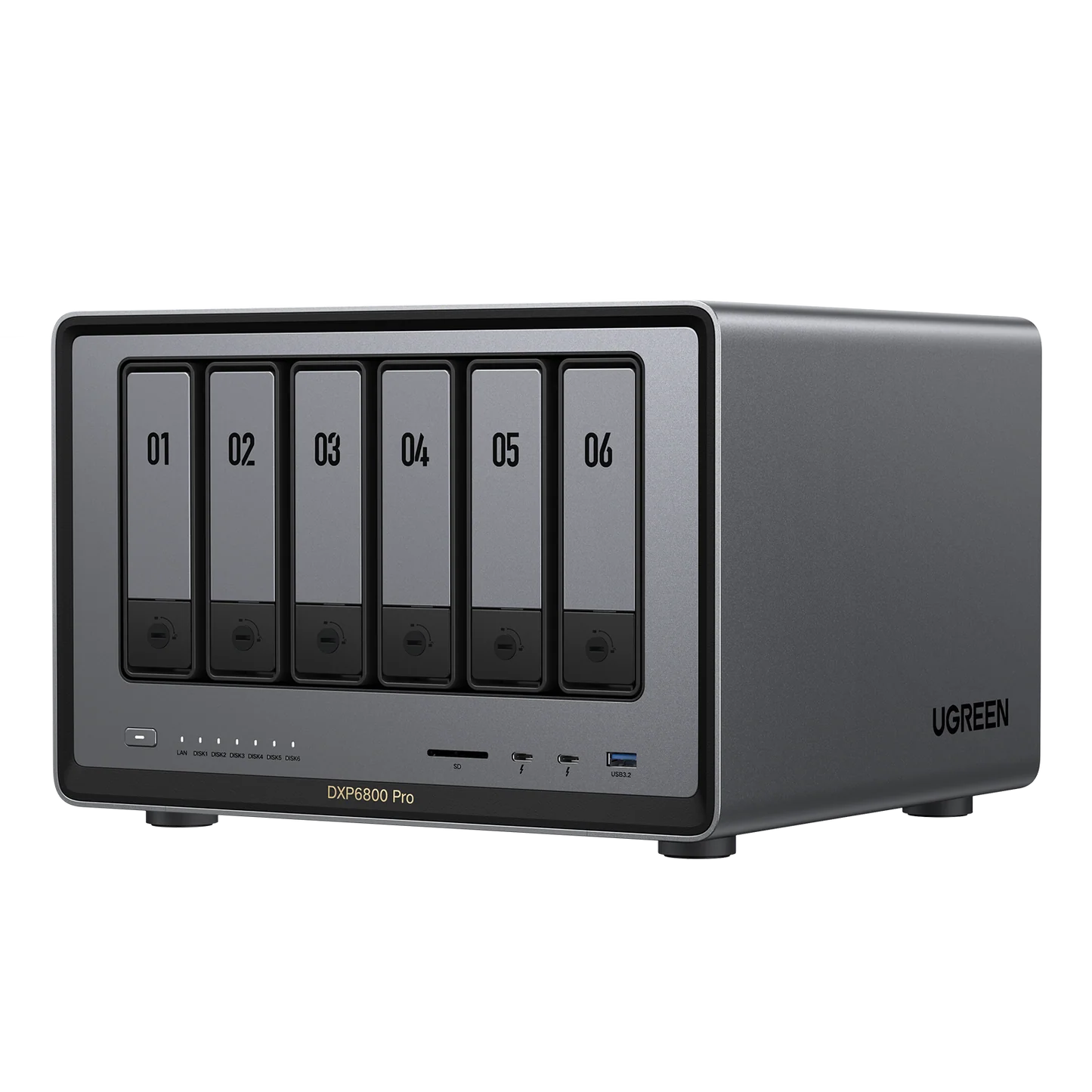

UGREEN NASync DXP6800 Pro – Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI
KSh 130,000
- Processor: 12th Gen Intel Core i5 1235U (10 Cores, 12 Threads)
- Memory: 8GB DDR5 RAM (Expandable up to 64GB)
- Storage Bays: 6x SATA HDD/SSD slots, 2x M.2 NVMe slots

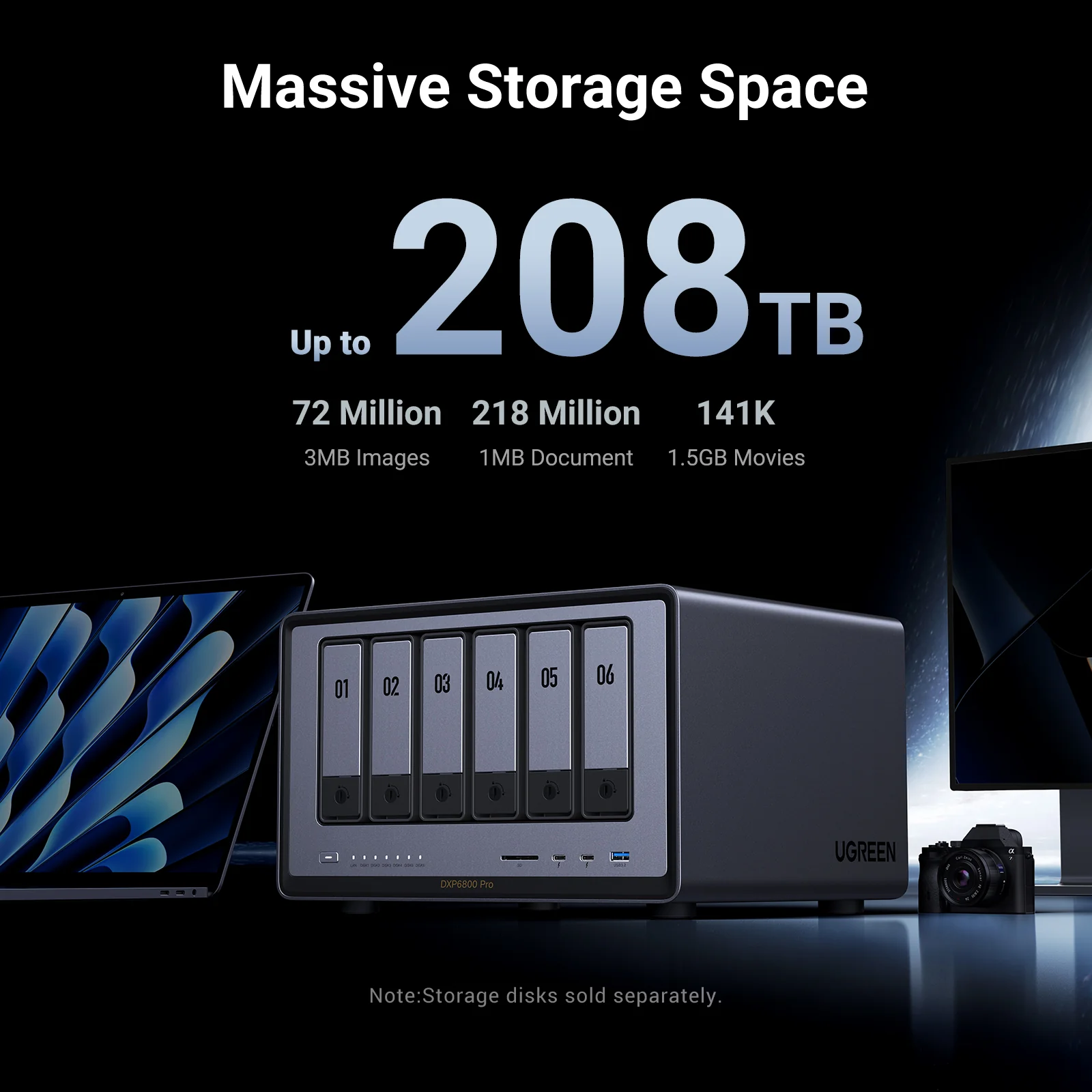

- Maximum Capacity: 208TB (6x 32TB + 2x 8TB)

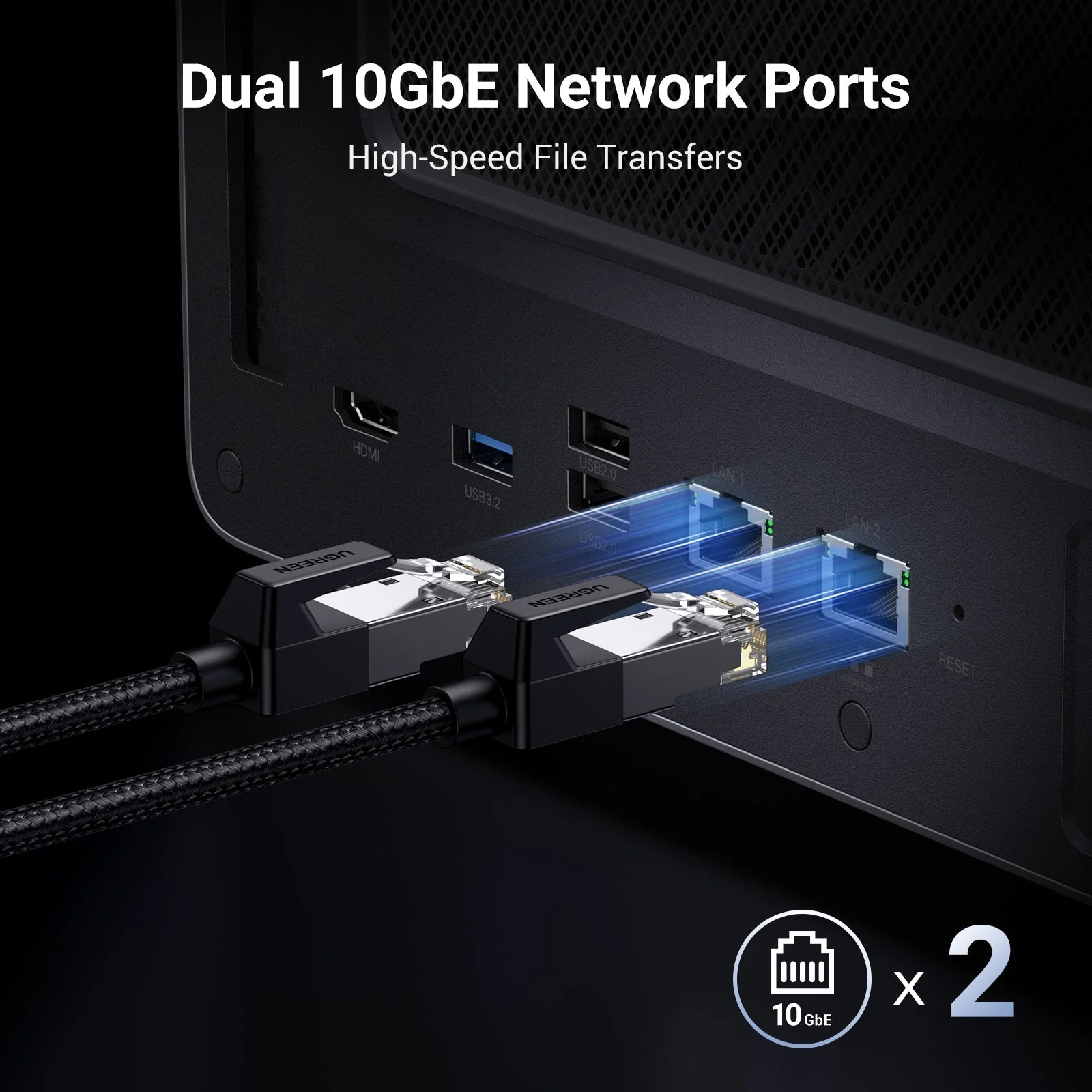

- Network Ports: 2x 10GbE (Supports Aggregation)

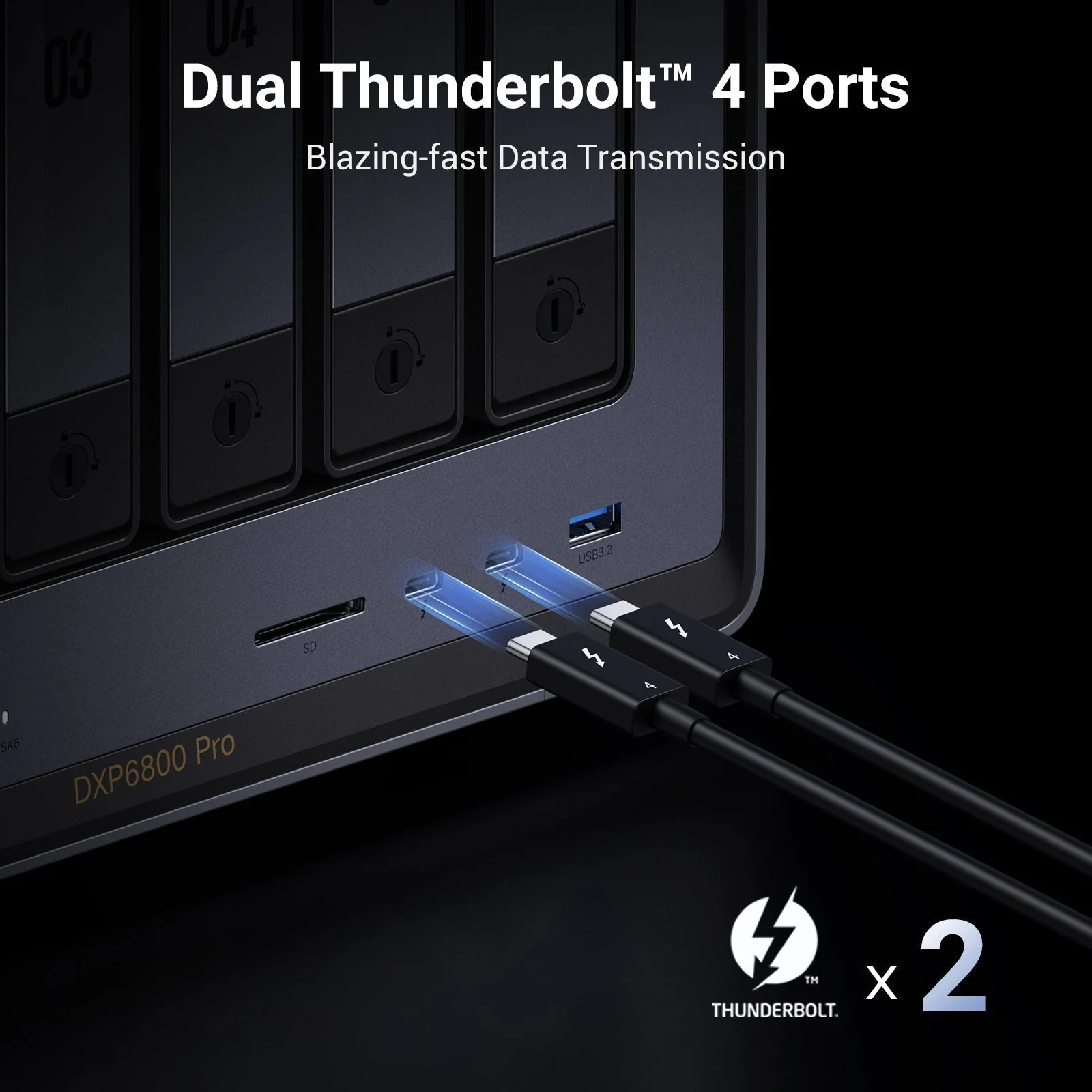

- Front Ports: 2x Thunderbolt 4, 1x SD 4.0 Card Reader
- Video Output: 1x HDMI (8K Support)
- PCIe Expansion: 1x PCIe x4 slot
- Supported RAID: JBOD, Basic, 0, 1, 5, 6, 10
- Operating System: UGOS Pro All-in-One OS
UGREEN NASync DXP6800 Pro Highlights
- 6 drive bays
- Up to 64GB memory
- 10 CPU cores
- Core i5-1235U processor
- 8TB to 208TB capacities
- UGOS Pro operating system
Compare UGREEN NASync DXP6800 Pro - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI with Similar Products
Compare UGREEN NASync DXP6800 Pro - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI specs, features and price with similar products and alternatives.
Selected Item  UGREEN NASync DXP6800 Pro - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMIKSh 130,000Add to cart |
|---|
Add to comparison
1 space availableGeneral
| Specification | UGREEN NASync DXP6800 Pro - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP480T Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP8800 Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI |
|---|---|---|---|
| Brand | UGREEN | UGREEN | UGREEN |
| Model | DXP6800 Pro | DXP480T Plus | DXP8800 Plus |
| Product type | Network-attached storage | All-flash network-attached storage | Network-attached storage |
Hardware & Storage
| Specification | UGREEN NASync DXP6800 Pro - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP480T Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP8800 Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI |
|---|---|---|---|
| Drive bays | 6 SATA drive bays and 2 M.2 NVMe SSD slots | 4 M.2 NVMe SSD slots | 8 SATA drive bays and 2 M.2 NVMe SSD slots |
| Supported drives | 2.5-inch and 3.5-inch SATA drives; M.2 NVMe 2280 SSDs; verify individual drives against the manufacturer compatibility list | M.2 NVMe 2280 SSDs; verify individual SSDs against the manufacturer compatibility list | 2.5-inch and 3.5-inch SATA drives; M.2 NVMe 2280 SSDs; verify individual drives against the manufacturer compatibility list |
| Maximum storage capacity | Up to 208TB: 6 × 32TB SATA drives plus 2 × 8TB M.2 SSDs; usable capacity depends on RAID | Manufacturer lists up to 32TB using four compatible 8TB SSDs; usable space depends on the storage mode | Up to 272TB: 8 × 32TB SATA drives plus 2 × 8TB M.2 SSDs; usable capacity depends on RAID |
| RAID and storage modes | JBOD, Basic, RAID 0, 1, 5, 6 and 10; availability depends on installed drives | JBOD, Basic, RAID 0, 1, 5, 6 and 10; availability depends on installed drives | JBOD, Basic, RAID 0, 1, 5, 6 and 10; availability depends on installed drives |
| Cache and SSD slots | 2 × M.2 NVMe SSD slots for cache or storage | 4 × M.2 NVMe slots for all-flash storage | 2 × M.2 NVMe SSD slots for cache or storage |
Networking & Services
| Specification | UGREEN NASync DXP6800 Pro - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP480T Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP8800 Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI |
|---|---|---|---|
| Ethernet ports and speed | 2 RJ45 ports, each up to 10GbE; negotiated link speed and file-transfer performance depend on the connected network | 1 RJ45 10GbE port; supports 10/100/1000Mbps, 2.5/5/10Gbps auto-negotiation | 2 RJ45 ports, each up to 10GbE; negotiated link speed and file-transfer performance depend on the connected network |
| Other ports | 2 Thunderbolt 4 ports up to 40Gbps each; 2 USB 3.2 Gen 2 ports up to 10Gbps; 2 USB 2.0 ports up to 480Mbps; SD 4.0 card slot; HDMI output | 2 Thunderbolt 4 ports up to 40Gbps each; 1 USB-A 3.2 Gen 2 port up to 10Gbps; HDMI output; Wi-Fi 6 on 2.4GHz and 5GHz | 2 Thunderbolt 4 ports up to 40Gbps each; 2 USB 3.2 Gen 2 ports up to 10Gbps; 2 USB 2.0 ports up to 480Mbps; SD 4.0 card slot; HDMI output |
| File and application services | File storage and sharing; Files and Photos applications; ext4 and Btrfs internal file systems | File storage and sharing; Files and Photos applications; ext4 and Btrfs internal file systems | File storage and sharing; Files and Photos applications; ext4 and Btrfs internal file systems |
| Backup options | UGOS Pro file synchronization and backup; host and external-storage backup functions | UGOS Pro file synchronization and backup; host and external-storage backup functions | UGOS Pro file synchronization and backup; host and external-storage backup functions |
| Security and encryption | Account permissions; HTTPS encryption; firewall and IP access controls | Account permissions; HTTPS encryption; firewall and IP access controls | Account permissions; HTTPS encryption; firewall and IP access controls |
Design & Power
| Specification | UGREEN NASync DXP6800 Pro - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP480T Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP8800 Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI |
|---|---|---|---|
| Cooling | Active fan cooling | Active fan cooling | Active fan cooling |
| Power supply and consumption | Published consumption: 43.07W drive access, 24.91W drive hibernation; external power supply | 20V / 7A DC input; published consumption: 23.14W drive access, 16.94W drive hibernation | Published consumption: 70.39W drive access, 28.99W drive hibernation; external power supply |
Design
| Specification | UGREEN NASync DXP6800 Pro - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP480T Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP8800 Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI |
|---|---|---|---|
| Dimensions | 293 × 258 × 200 mm | 179 × 142 × 52mm | 360 × 258 × 189 mm |
Performance
| Specification | UGREEN NASync DXP6800 Pro - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP480T Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP8800 Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI |
|---|---|---|---|
| Processor | Intel Core i5-1235U; 12th generation; 10 cores and 12 threads; maximum turbo frequency 4.40GHz | Intel Core i5-1235U; 12th generation; 10 cores and 12 threads; maximum turbo frequency 4.40GHz | Intel Core i5-1235U; 12th generation; 10 cores and 12 threads; maximum turbo frequency 4.40GHz |
Memory & Storage
| Specification | UGREEN NASync DXP6800 Pro - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP480T Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP8800 Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI |
|---|---|---|---|
| Memory and upgrades | 8GB DDR5 standard configuration; expandable up to 64GB; installed memory depends on supplied configuration | 8GB DDR5 standard configuration; expandable up to 64GB; installed memory depends on supplied configuration | 8GB DDR5 standard configuration; expandable up to 64GB; installed memory depends on supplied configuration |
Software
| Specification | UGREEN NASync DXP6800 Pro - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP480T Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI | UGREEN NASync DXP8800 Plus - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI |
|---|---|---|---|
| Operating system | UGOS Pro | UGOS Pro | UGOS Pro |
Specs
UGREEN NASync DXP6800 Pro - Core i5 1235U, 10GbE Port, Wi-Fi 6, 8K HDMI specifications
General
| Brand | UGREEN |
|---|---|
| Model | DXP6800 Pro |
| Product type | Network-attached storage |
Hardware & Storage
| Processor | Intel Core i5-1235U; 12th generation; 10 cores and 12 threads; maximum turbo frequency 4.40GHz |
|---|---|
| Memory and upgrades | 8GB DDR5 standard configuration; expandable up to 64GB; installed memory depends on supplied configuration |
| Drive bays | 6 SATA drive bays and 2 M.2 NVMe SSD slots |
| Supported drives | 2.5-inch and 3.5-inch SATA drives; M.2 NVMe 2280 SSDs; verify individual drives against the manufacturer compatibility list |
| Maximum storage capacity | Up to 208TB: 6 × 32TB SATA drives plus 2 × 8TB M.2 SSDs; usable capacity depends on RAID |
| RAID and storage modes | JBOD, Basic, RAID 0, 1, 5, 6 and 10; availability depends on installed drives |
| Cache and SSD slots | 2 × M.2 NVMe SSD slots for cache or storage |
Networking & Services
| Ethernet ports and speed | 2 RJ45 ports, each up to 10GbE; negotiated link speed and file-transfer performance depend on the connected network |
|---|---|
| Other ports | 2 Thunderbolt 4 ports up to 40Gbps each; 2 USB 3.2 Gen 2 ports up to 10Gbps; 2 USB 2.0 ports up to 480Mbps; SD 4.0 card slot; HDMI output |
| Operating system | UGOS Pro |
| File and application services | File storage and sharing; Files and Photos applications; ext4 and Btrfs internal file systems |
| Backup options | UGOS Pro file synchronization and backup; host and external-storage backup functions |
| Security and encryption | Account permissions; HTTPS encryption; firewall and IP access controls |
Design & Power
| Cooling | Active fan cooling |
|---|---|
| Power supply and consumption | Published consumption: 43.07W drive access, 24.91W drive hibernation; external power supply |
Design & Package
| Dimensions | 293 × 258 × 200 mm |
|---|
