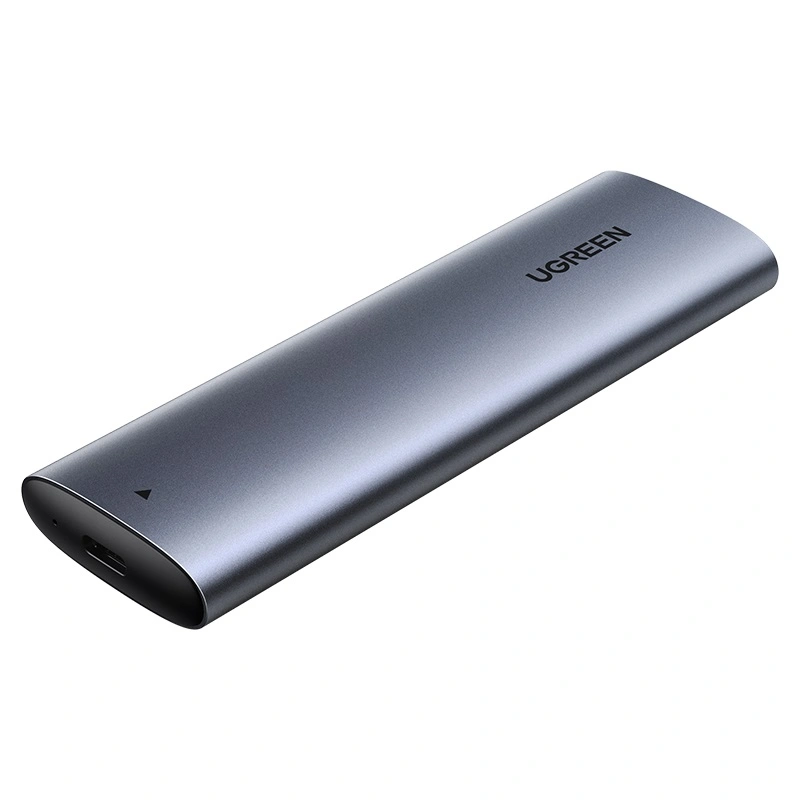

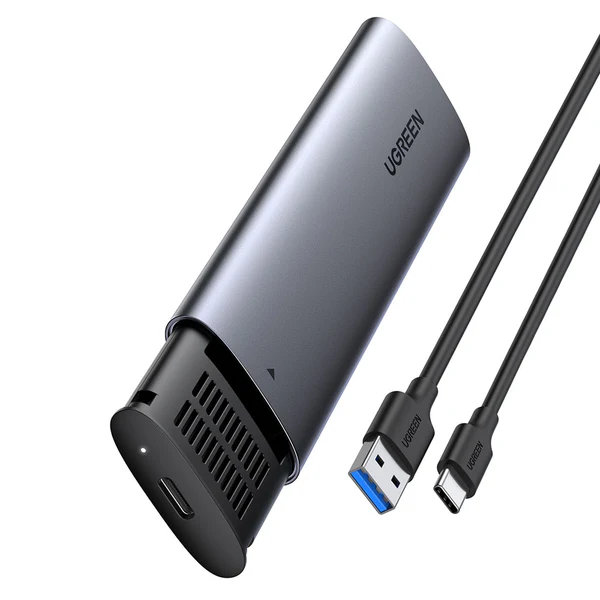

UGREEN USB-C to M.2 NGFF SATA SSD Enclosure
KSh 3,300
- Model: CM400 (UG-10903)
- Input: USB-C Female
- Output: M.2 NGFF SATA (B-Key / M+B Key)
- Supported SSD Sizes: 2230 / 2242 / 2260 / 2280
- Maximum Capacity: Up to 2TB
- SATA Speed: Up to 6Gbps
- USB Speed: Up to 5Gbps
- Protocol Support: UASP, S.M.A.R.T, TRIM
- Material: Aluminum Alloy
- Cable Included: USB-C to USB-A (50cm)
- Compatibility: Windows, macOS, Linux, Chrome OS, PS4, PS3, Xbox, OTG devices
- Warranty: 1 Year
Complete Your Setup
UGREEN USB-C to M.2 NGFF SATA SSD Enclosure Highlights
- 5 Gbps data transfer
- 1 drive bays
- SATA III drive interface
- USB-C host interface
- Aluminium alloy material
- Up to 2TB maximum supported capacity
Specs
UGREEN USB-C to M.2 NGFF SATA SSD Enclosure specifications
General
| Brand | UGREEN |
|---|---|
| Model | CM400 (10903) |
| Product type | M.2 SATA NGFF SSD enclosure |
Drive Support
| Supported drive types | M.2 SATA NGFF SSDs with B-Key or B+M-Key; NVMe PCIe SSDs unsupported |
|---|---|
| Drive sizes and lengths | M.2 2230 / 2242 / 2260 / 2280 |
| Drive bays | 1 |
| Maximum supported capacity | Up to 2TB |
| Drive interface | SATA III; up to 6Gbps |
Connection & Operation
| Host interface | USB-C; USB 3.1 Gen 1 |
|---|---|
| Transfer speed | USB host link up to 5Gbps; SATA link up to 6Gbps |
| Supported protocols | UASP and S.M.A.R.T. |
| Offline cloning | No standalone offline cloning |
| Operating-system compatibility | Windows, macOS, Linux and Chrome OS; mobile hosts require USB OTG |
Design & Power
| Drive installation | Tool-free installation |
|---|---|
| Cooling | Passive aluminium housing |
| Material | Aluminium alloy |
| Power requirements | USB bus-powered |
Design & Package
| Dimensions | 119 × 37 × 12 mm |
|---|---|
| In the box | Enclosure; 50cm USB-A to USB-C cable |
