Product details
The Xiaomi Monitor A24i provides a 23.8-inch IPS display for documents, everyday entertainment and a connected computer workspace. It is the original version of this model, with its own display specifications and stand design. Its narrow borders keep the desktop presentation straightforward, while a separate power adapter supplies the monitor through its DC input.
The screen resolution is 1920 × 1080 in a 16:9 format, and the published refresh rate is 100Hz maximum. To obtain the supported resolution and refresh rate together, use a compatible computer output, cable and display setting. The monitor and its source equipment must support the selected connection; a port or cable alone does not guarantee the maximum display mode.
Colour specifications include 99% sRGB coverage and 16.7 million colours. Published brightness is 250cd/m² typical, with a contrast ratio of 1000:1 typical. Average ΔE < 2 factory calibration. These figures describe the manufacturer's specified settings and test conditions. Choose a suitable picture mode for your work and adjust brightness for the room rather than treating a laboratory measurement as a guarantee in every environment.
Its connection panel provides DisplayPort 1.4 ×1; HDMI ×1; DC IN ×1. Check your computer’s available outputs before choosing a cable. The listed display connections carry a compatible video signal, while the DC connection is used for the monitor’s power supply. Connect the power adapter and a suitable signal cable, then select the required input and display mode on the connected computer.

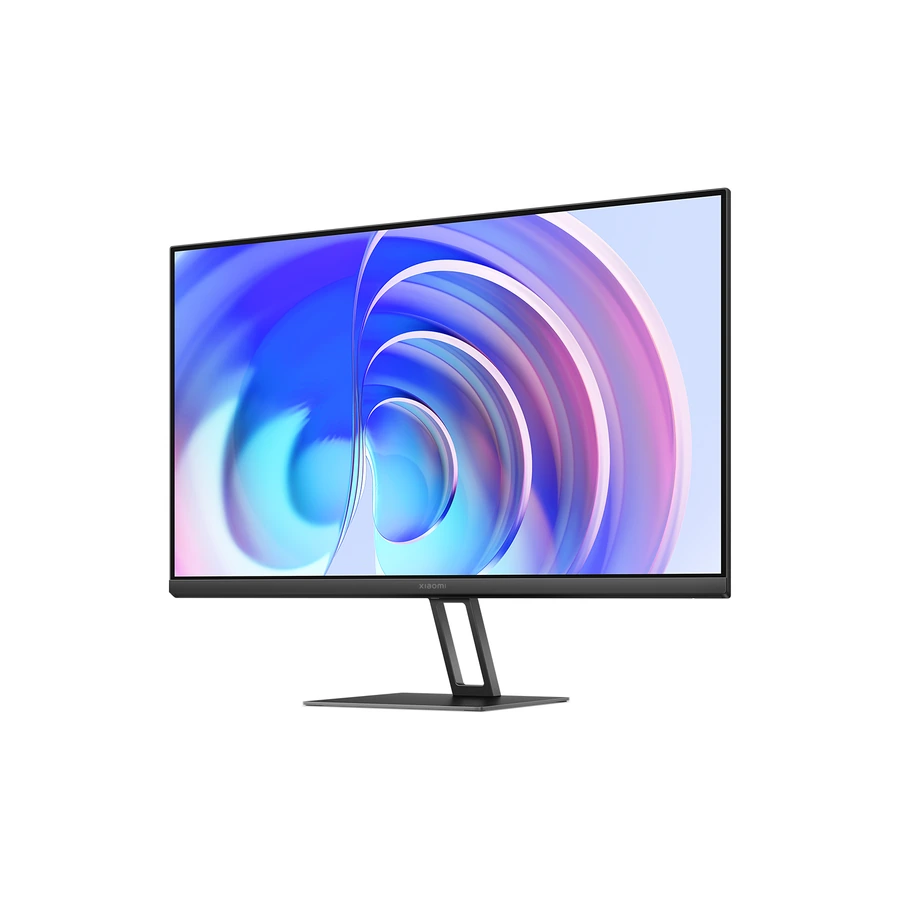

The stand provides adjustable display angle. Wall mounting supported; bracket purchased separately; hole spacing not specified on the selected pages. If using an alternative mounting arrangement, check its compatibility with the monitor and follow the relevant assembly instructions. Position the screen at a comfortable viewing height and leave space behind it for cable connections. Secure the stand and base before connecting or adjusting the display.
Published dimensions are 539.9 × 411.4 × 170mm; base included, and product weight is 2.98kg. Its power specification is 24W; 12V DC, 2A input. The operating temperature range is 0°C to 40°C and operating humidity is 20% to 80% RH. The package contains the display, base, bracket, screwdriver, user manual, two base screws, hdmi cable and power adapter. Follow the user manual for assembly and setup, and retain the original power adapter for the intended input rating.
