Product details

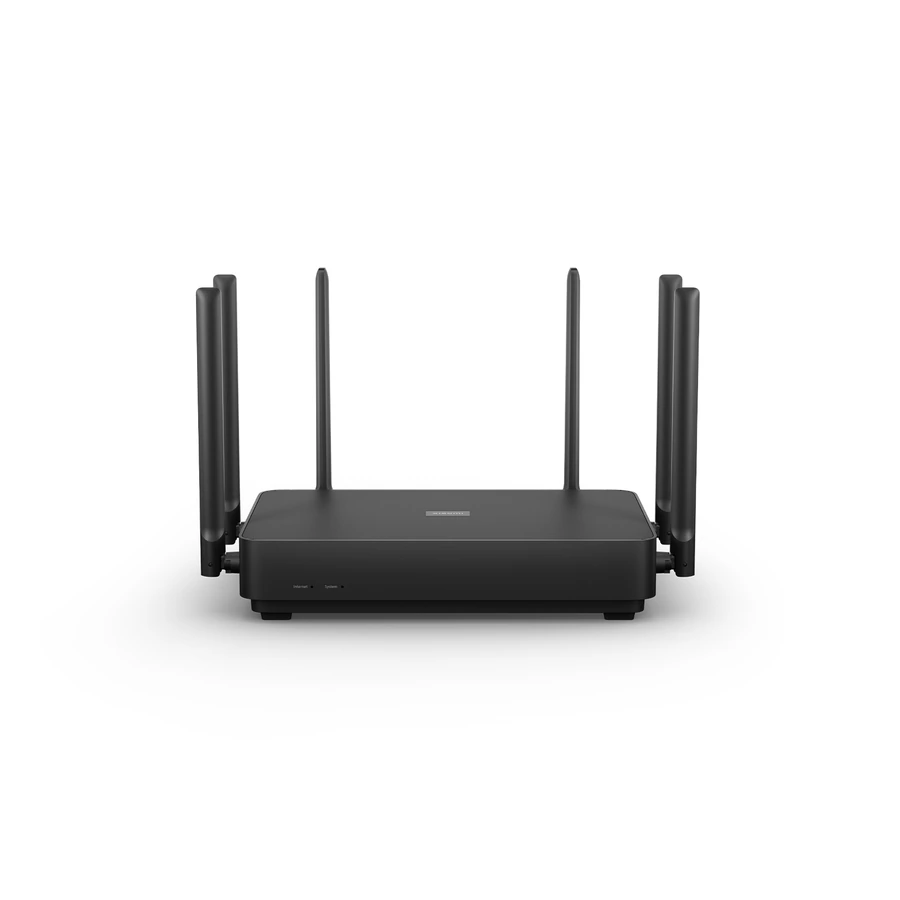

The Xiaomi Router AX3200 is a black dual-band router designed to support a busy home network through Wi-Fi and Gigabit Ethernet. Its external omnidirectional antennas surround a body measuring 284 × 186 × 186mm. A MediaTek Filogic800 processor with two A53 cores running at 1.35GHz works alongside 256MB of memory to handle routing and connected-device activity.
The 2.4GHz radio uses a 4 × 4 configuration and supports a theoretical maximum rate of 800Mbps. The 5GHz radio also uses a 4 × 4 configuration and supports Wi-Fi 6, with a theoretical maximum of 2402Mbps. Their combined figure describes the capability of both bands together rather than a speed promised to one device. Broadband limits, client support, interference, distance and walls all influence the speeds you experience.
For wired networking, there is one adaptive 10/100/1000Mbps WAN port and three adaptive Gigabit LAN ports. The separate WAN connection links to your upstream modem or network, while the LAN ports serve devices that benefit from a cable connection. The supplied network cable helps with setup. A reset button, a mesh networking button and separate system and internet indicators provide straightforward access to common controls.
MiWiFi ROM is based on OpenWrt, with management available through a web interface and supported Android or iOS software. Xiaomi also describes app management through Xiaomi Home. Wireless encryption includes WPA-PSK, WPA2-PSK and WPA3-SAE; connected clients must support the chosen mode. OFDMA and multi-user MIMO features depend on compatible wireless devices and suitable operating conditions.
Mesh networking supports up to ten compatible units, with compatibility and firmware requirements applying. Xiaomi lists specific supported router models, so confirm that an existing router supports the intended mesh arrangement before combining equipment. The advertised 128-device capacity comes from laboratory testing and should not be read as guaranteed performance under every workload. The package includes the router, user manual, power cord and network cable. This listing follows the EU inventory designation. Use the router at 0–40°C with 10–90% non-condensing relative humidity, and leave clear space around the body and antennas.
