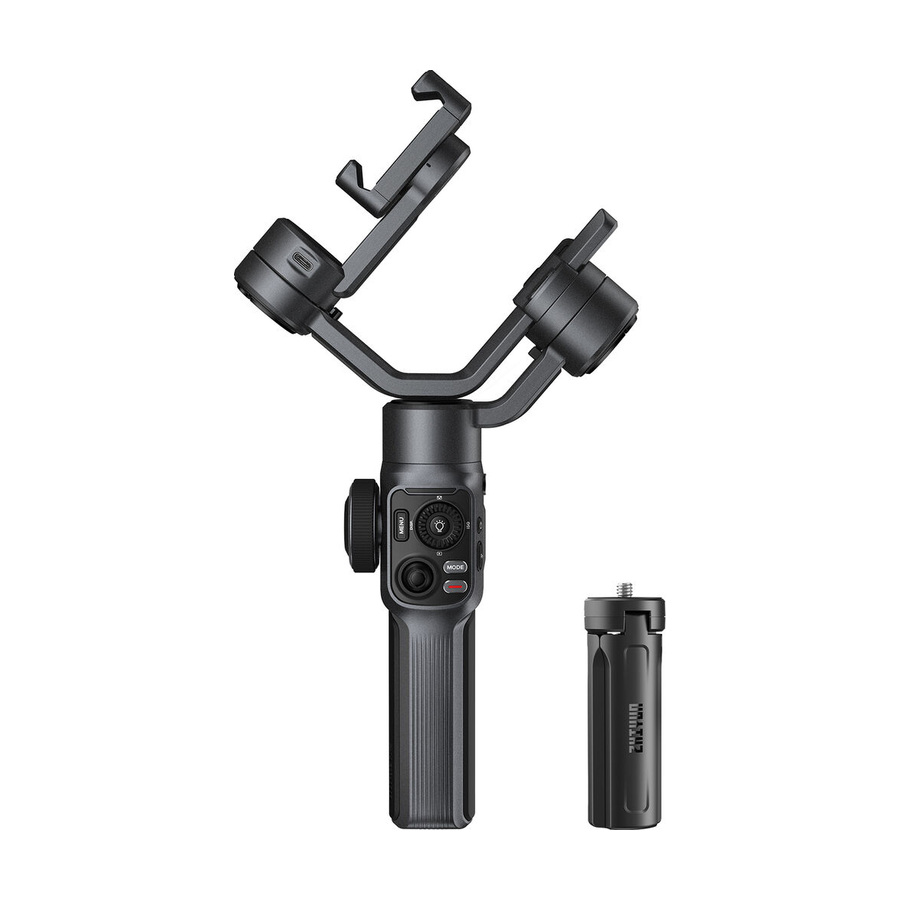

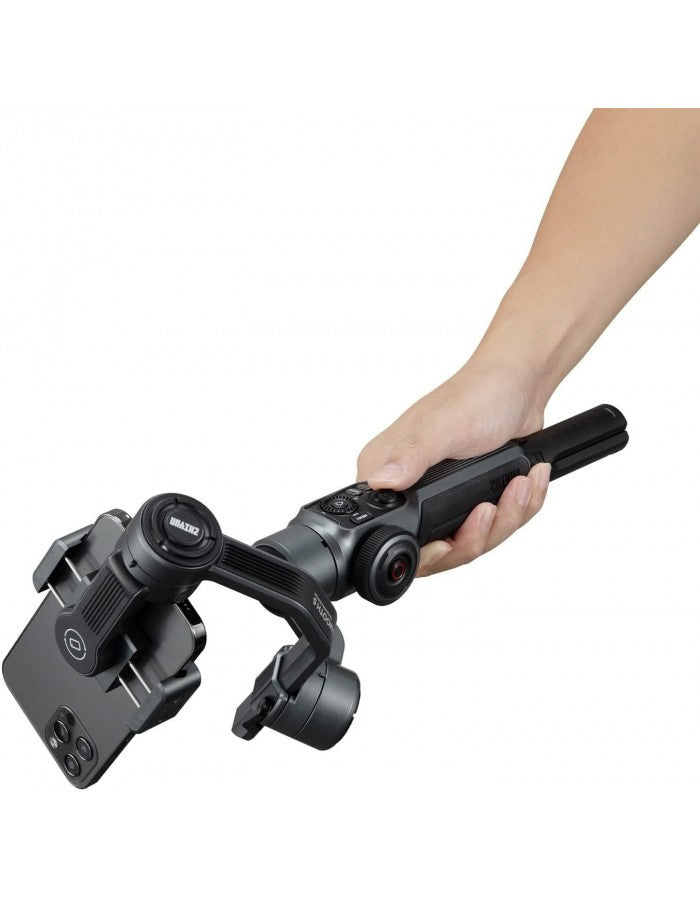

ZHIYUN SMOOTH 5 Standard Kit
KSh 20,800
- Three-axis stabilization for smoother smartphone footage
- Zoom and focus adjustments through the control wheel
- Switchable portrait and landscape filming
- Vortex mode creates rotating camera moves
- ZY Cami and StaCam support smartphone filming
- USB-C charging supports 15 W fast charging
Complete Your Setup
View all
ZHIYUN SMOOTH 5 Standard Kit Highlights
- 2,600 mAh battery
- Bluetooth 4.2 wireless connection
- 2 hours to recharge
- 300 g maximum load
- Device Charging
- ZY Cami and StaCam app
Compare ZHIYUN SMOOTH 5 Standard Kit with Similar Products
Compare ZHIYUN SMOOTH 5 Standard Kit specs, features and price with similar gimbals and alternatives.
Comparison full
0 spaces availableGeneral
| Specification | ZHIYUN SMOOTH 5 Standard Kit | DJI Osmo Mobile 8 Gimbal | DJI Osmo Mobile 8P Gimbal | ZHIYUN SMOOTH 5S Standard Kit |
|---|---|---|---|---|
| Brand | ZHIYUN | DJI | DJI | ZHIYUN |
| Model | SMOOTH 5; Hardware model: SM115 | Osmo Mobile 8 | Osmo Mobile 8P | SMOOTH 5S; Hardware model: SM118 |
| Announced | 2021 | November 5, 2025 | May 7, 2026 | 2022 |
| Type | Smartphone gimbal | Smartphone gimbal | Smartphone gimbal | Smartphone gimbal |
| Stabilization | Three-axis motorized stabilization; Following accuracy: Static deviation: ±0.01° to ±0.04°; motion deviation: ±0.05° to ±0.3° | 3-axis motorized stabilization; 7th-generation DJI stabilization | 3-axis motorized stabilization; 8th-generation DJI stabilization | Three-axis motorized stabilization; Following accuracy: Static deviation: ±0.01° to ±0.04°; motion deviation: ±0.05° to ±0.3° |
| Color | Not specified | Gray | Dark Gray | Not specified |
Compatibility & Mounting
| Specification | ZHIYUN SMOOTH 5 Standard Kit | DJI Osmo Mobile 8 Gimbal | DJI Osmo Mobile 8P Gimbal | ZHIYUN SMOOTH 5S Standard Kit |
|---|---|---|---|---|
| Supported Device | Compatible smartphones; check the manufacturer model compatibility list | Smartphones | Smartphones | Compatible smartphones; check the manufacturer model compatibility list |
| Tested Payload | 150–300 g | Not applicable | Not applicable | 150–300 g |
| Compatible Phone Weight | 150–300 g | 170-300 g | 170-300 g | 150–300 g |
| Compatible Phone Size | Clamp width: 50–90 mm; phone thickness: under 10 mm | Width: 67-84 mm; thickness: 6.9-10 mm | Width: 67-84 mm; thickness: 6.9-11 mm | Clamp width: 50–90 mm; phone thickness: under 10 mm |
| Camera Compatibility | Not applicable | Smartphone gimbal; see DJI smartphone compatibility list | Smartphone gimbal; see DJI smartphone compatibility list | Not applicable |
| Mounting System | Adjustable smartphone clamp; balance the phone before powering on | DJI OM magnetic phone clamp | DJI OM Magnetic Phone Clamp 5 | Adjustable smartphone clamp; balance the phone before powering on |
| Accessory Mounts / Ports | 1/4-inch tripod mounting hole; USB-C charging / firmware port; wrist-strap hole; USB-C phone charging output; magnetic fill-light slots | 1/4"-20 UNC bottom port; USB-C charging port; roll-axis USB-C output port; counterweight mounting hole | 1/4"-20 UNC bottom port; USB-C charging port; roll-axis USB-C output port | 1/4-inch tripod mounting hole; USB-C charging / firmware port; wrist-strap hole; USB-C phone charging output; magnetic fill-light slots |
Gimbal & Movement
| Specification | ZHIYUN SMOOTH 5 Standard Kit | DJI Osmo Mobile 8 Gimbal | DJI Osmo Mobile 8P Gimbal | ZHIYUN SMOOTH 5S Standard Kit |
|---|---|---|---|---|
| Axes | Tilt, roll and pan | Pan, tilt and roll | Pan, tilt and roll | Tilt, roll and pan |
| Mechanical Range | Tilt: -140° to +209°; roll: -90° to +210°; pan: -180° to +180° | Pan: 360° unlimited; roll: -77° to 255°; tilt: -224° to 100° | Pan: 360° unlimited; roll: -77° to 255°; tilt: -224° to 100° | Tilt: -140° to +209°; roll: -90° to +259°; pan: -180° to +180° |
| Controllable Range | Tilt: -90° to +170°; roll: -50° to +50°; pan: -180° to +180° | Pan: 360° unlimited; roll: -67° to 245°; tilt: -20° to 40° | Pan: 360° unlimited; roll: -52° to 256°; tilt: -37° to 55° | Tilt: -90° to +170°; roll: -50° to +50°; pan: -180° to +180° |
| Axis Locks | Manual axis locks for folding and storage | Manual folding/storage locks | Manual folding/storage locks | Manual axis locks for folding and storage |
| Vertical Shooting | Portrait and landscape mounting supported | Yes | Yes | Portrait and landscape mounting supported |
| Max Control Speed | Not specified | 120°/s | 120°/s | Not specified |
Battery & Charging
| Specification | ZHIYUN SMOOTH 5 Standard Kit | DJI Osmo Mobile 8 Gimbal | DJI Osmo Mobile 8P Gimbal | ZHIYUN SMOOTH 5S Standard Kit |
|---|---|---|---|---|
| Battery Type | Built-in rechargeable battery; Operating voltage: 6.5–8.4 V; nominal 7.4 V | Li-Po 1S | Li-Po 1S | Built-in rechargeable battery; Operating voltage: 6.5–8.4 V; nominal 7.4 V |
| Battery Capacity | 2,600 mAh | 3350 mAh (12.06 Wh) | 3350 mAh (12.06 Wh) | 2,600 mAh |
| Battery Life | Approx. 4.5–25 hours; tested at 25°C with a balanced iPhone XR; shortest runtime with fill light at maximum, longest in standby with lights off | Approx. 10 hours; about 4-5 hours with intelligent tracking depending on fill-light use | Approx. 10 hours under DJI test conditions; about 3-5 hours with intelligent tracking depending on module and fill-light use; Osmo FrameTap battery life: Up to 4.5 hours standby; charging approx. 2.5 hours | Approx. 2.5–24 hours; tested at 25°C with a balanced iPhone XR; shortest runtime with fill light at maximum, longest in standby with lights off |
| Charging Time | Approx. 2 hours with 15 W fast charging; up to 4 hours with a 5 V / 2 A adapter at 25°C; Charging temperature: 0°C to 45°C | Approx. 2.5 hours with a 10W USB-C charger; Charging temperature: 5°C to 40°C | Approx. 2.5 hours; Charging temperature: 5°C to 40°C | Approx. 2 hours with 15 W fast charging; up to 4 hours with a 5 V / 2 A adapter at 25°C; Charging temperature: 0°C to 45°C |
| Charging Port | USB-C | USB-C | USB-C | USB-C |
| Device Charging | Yes; USB-C phone output, 5 V / 1 A maximum | Yes — can charge a connected smartphone | Yes — can charge a connected smartphone | Yes; USB-C phone output, 5 V / 1 A maximum |
Connectivity & Control
| Specification | ZHIYUN SMOOTH 5 Standard Kit | DJI Osmo Mobile 8 Gimbal | DJI Osmo Mobile 8P Gimbal | ZHIYUN SMOOTH 5S Standard Kit |
|---|---|---|---|---|
| App | ZY Cami and StaCam; functions depend on phone/app support | DJI Mimo | DJI Mimo | ZY Cami and StaCam; functions depend on phone/app support |
| Camera Control | Bluetooth shutter control on phones that support volume-button capture; additional controls through ZY Cami / StaCam | Bluetooth/app camera control; Apple DockKit support on compatible iPhones | Bluetooth/app camera control; Osmo FrameTap remote control; Apple DockKit support on compatible iPhones; Osmo FrameTap remote transmission: Wi-Fi: over 25 m under test conditions; Bluetooth: 10 m in an unobstructed environment; Osmo FrameTap wi-fi: 802.11 a/b/g/n/ac/ax; 2.4 / 5.8 GHz, region dependent | Bluetooth shutter control on phones that support volume-button capture; additional controls through ZY Cami / StaCam |
| Controls | Joystick, mode/menu buttons, focus/zoom wheel and selector, photo/video button, FN button, trigger and power button | Joystick, shutter/record button, M button, zoom/focus wheel and trigger | Osmo FrameTap touchscreen and joystick; gimbal joystick, shutter/record, M button, zoom/focus wheel and trigger; Osmo FrameTap touchscreen: 1.4-inch; 240 × 240; 800 cd/m² ±10%; 60 Hz | Joystick, mode/menu buttons, focus/zoom wheel and selector, photo/video button, FN button, trigger and power button |
Features
| Specification | ZHIYUN SMOOTH 5 Standard Kit | DJI Osmo Mobile 8 Gimbal | DJI Osmo Mobile 8P Gimbal | ZHIYUN SMOOTH 5S Standard Kit |
|---|---|---|---|---|
| Subject Tracking | SmartFollow through the ZY Cami app | Yes — ActiveTrack 8.0, Apple DockKit and optional DJI OM Multifunctional Module tracking | Yes — ActiveTrack 8.0, Apple DockKit and optional Multifunctional Module 2 tracking | SmartFollow through the ZY Cami app |
| Built-in Tripod | No | Yes — integrated tripod | Yes — split-design tripod | No |
| Extension Rod | No | Yes — built-in, up to 215 mm | Yes — built-in, up to 215 mm | No |
| Fill Light | Supports up to two optional magnetic fill lights; lights sold separately | Optional — via DJI OM Multifunctional Module | Optional — via DJI OM Multifunctional Module or Multifunctional Module 2 | Built-in tilt-axis fill light; supports up to two optional magnetic lights |
| Special Features | PF, L, F, POV, Vortex and GO modes; portrait / landscape shooting; ZY Cami Smart templates, timelapse and editing; Operating temperature: -10°C to 45°C | 360° pan rotation; native iPhone tracking with DockKit; Quick Launch; low-angle shooting; gesture control; ShotGuides; one-tap editing; Operating temperature: 0°C to 40°C | Detachable Osmo FrameTap remote; phone-screen mirroring/live view; 360° pan rotation; Quick Launch; low-angle shooting; gesture control; ShotGuides; one-tap editing; Operating temperature: 0°C to 40°C | PF, L, F, POV, Vortex and GO modes; portrait / landscape shooting; ZY Cami Smart templates, timelapse and editing; Operating temperature: -10°C to 45°C |
What's in the Box
| Specification | ZHIYUN SMOOTH 5 Standard Kit | DJI Osmo Mobile 8 Gimbal | DJI Osmo Mobile 8P Gimbal | ZHIYUN SMOOTH 5S Standard Kit |
|---|---|---|---|---|
| In the Box | SMOOTH 5 gimbal; detachable tripod; USB-C cable; quick-start guide | Osmo Mobile 8, magnetic phone clamp, USB-C to USB-C power cable (50 cm), USB-C to USB-C phone charging/audio cable (15 cm), storage pouch | Osmo Mobile 8P, DJI OM Magnetic Phone Clamp 5, Osmo FrameTap, USB-C to USB-C power cable (50 cm), USB-C to USB-C phone charging cable (15 cm), storage pouch | SMOOTH 5S gimbal; detachable tripod; USB-C cable; quick-start guide |
Design
| Specification | ZHIYUN SMOOTH 5 Standard Kit | DJI Osmo Mobile 8 Gimbal | DJI Osmo Mobile 8P Gimbal | ZHIYUN SMOOTH 5S Standard Kit |
|---|---|---|---|---|
| Dimensions | 311 × 168 × 52 mm | Unfolded: 288 × 107 × 96 mm; folded: 190 × 95 × 46 mm | Unfolded: 291 × 110 × 101 mm; folded: 196 × 105 × 38 mm | 311 × 168 × 52 mm |
| Weight | 615 g, including battery | Approx. 370 g including built-in tripod, magnetic phone clamp and Multifunctional Module | Approx. 386 g including built-in tripod, Magnetic Phone Clamp 5, Multifunctional Module 2 and Osmo FrameTap; Osmo FrameTap dimensions and weight: 53 × 37 × 19 mm; 29 g | 625 g, including battery and tripod |
Connectivity
| Specification | ZHIYUN SMOOTH 5 Standard Kit | DJI Osmo Mobile 8 Gimbal | DJI Osmo Mobile 8P Gimbal | ZHIYUN SMOOTH 5S Standard Kit |
|---|---|---|---|---|
| Bluetooth | Bluetooth 4.2 | Bluetooth 5.3 | Gimbal: Bluetooth 5.3; Osmo FrameTap: Bluetooth 5.4 BR/EDR | Bluetooth 4.2 |
Specs
ZHIYUN SMOOTH 5 Standard Kit specifications
General
| Brand | ZHIYUN |
|---|---|
| Model | SMOOTH 5; Hardware model: SM115 |
| Announced | 2021 |
| Type | Smartphone gimbal |
| Stabilization | Three-axis motorized stabilization; Following accuracy: Static deviation: ±0.01° to ±0.04°; motion deviation: ±0.05° to ±0.3° |
| Dimensions | 311 × 168 × 52 mm |
| Weight | 615 g, including battery |
Compatibility & Mounting
| Supported Device | Compatible smartphones; check the manufacturer model compatibility list |
|---|---|
| Tested Payload | 150–300 g |
| Compatible Phone Weight | 150–300 g |
| Compatible Phone Size | Clamp width: 50–90 mm; phone thickness: under 10 mm |
| Mounting System | Adjustable smartphone clamp; balance the phone before powering on |
| Accessory Mounts / Ports | 1/4-inch tripod mounting hole; USB-C charging / firmware port; wrist-strap hole; USB-C phone charging output; magnetic fill-light slots |
Gimbal & Movement
| Axes | Tilt, roll and pan |
|---|---|
| Mechanical Range | Tilt: -140° to +209°; roll: -90° to +210°; pan: -180° to +180° |
| Controllable Range | Tilt: -90° to +170°; roll: -50° to +50°; pan: -180° to +180° |
| Axis Locks | Manual axis locks for folding and storage |
| Vertical Shooting | Portrait and landscape mounting supported |
Battery & Charging
| Battery Type | Built-in rechargeable battery; Operating voltage: 6.5–8.4 V; nominal 7.4 V |
|---|---|
| Battery Capacity | 2,600 mAh |
| Battery Life | Approx. 4.5–25 hours; tested at 25°C with a balanced iPhone XR; shortest runtime with fill light at maximum, longest in standby with lights off |
| Charging Time | Approx. 2 hours with 15 W fast charging; up to 4 hours with a 5 V / 2 A adapter at 25°C; Charging temperature: 0°C to 45°C |
| Charging Port | USB-C |
| Device Charging | Yes; USB-C phone output, 5 V / 1 A maximum |
Connectivity & Control
| Bluetooth | Bluetooth 4.2 |
|---|---|
| App | ZY Cami and StaCam; functions depend on phone/app support |
| Camera Control | Bluetooth shutter control on phones that support volume-button capture; additional controls through ZY Cami / StaCam |

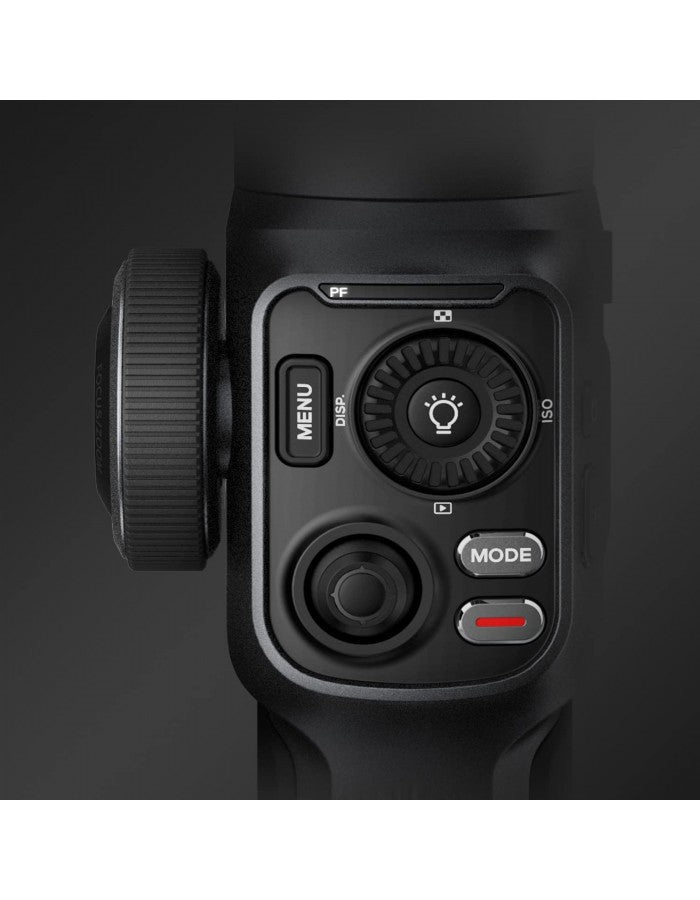

| Controls | Joystick, mode/menu buttons, focus/zoom wheel and selector, photo/video button, FN button, trigger and power button |
Features
| Subject Tracking | SmartFollow through the ZY Cami app |
|---|---|
| Built-in Tripod | No |
| Extension Rod | No |
| Fill Light | Supports up to two optional magnetic fill lights; lights sold separately |
| Special Features | PF, L, F, POV, Vortex and GO modes; portrait / landscape shooting; ZY Cami Smart templates, timelapse and editing; Operating temperature: -10°C to 45°C |
What's in the Box
| In the Box | SMOOTH 5 gimbal; detachable tripod; USB-C cable; quick-start guide |
|---|
