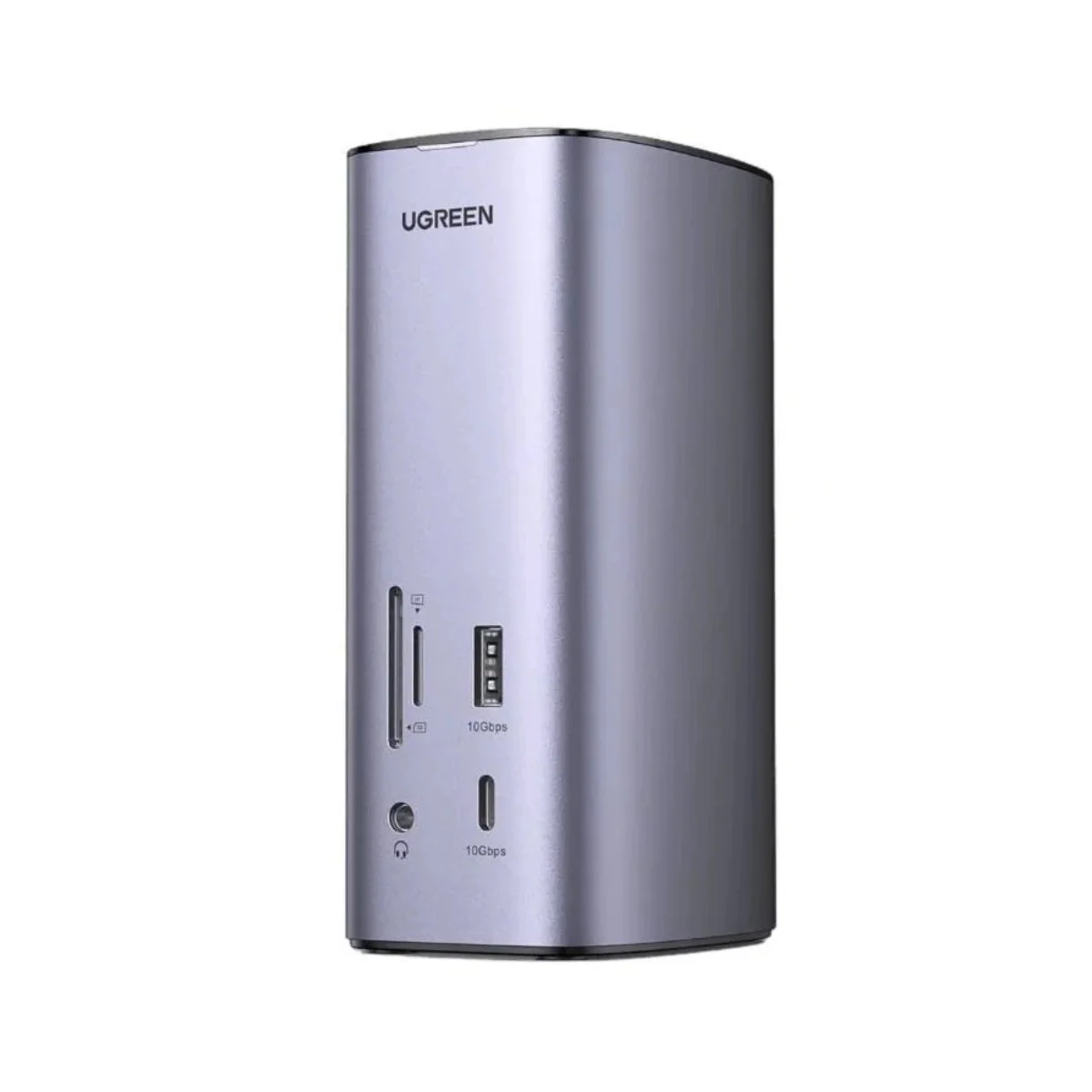

UGREEN 12-in-1 Fast Charge Universal Docking Station
KSh 24,000
- Brand: UGREEN
- Model: CM555
- Part Number: UG-90325

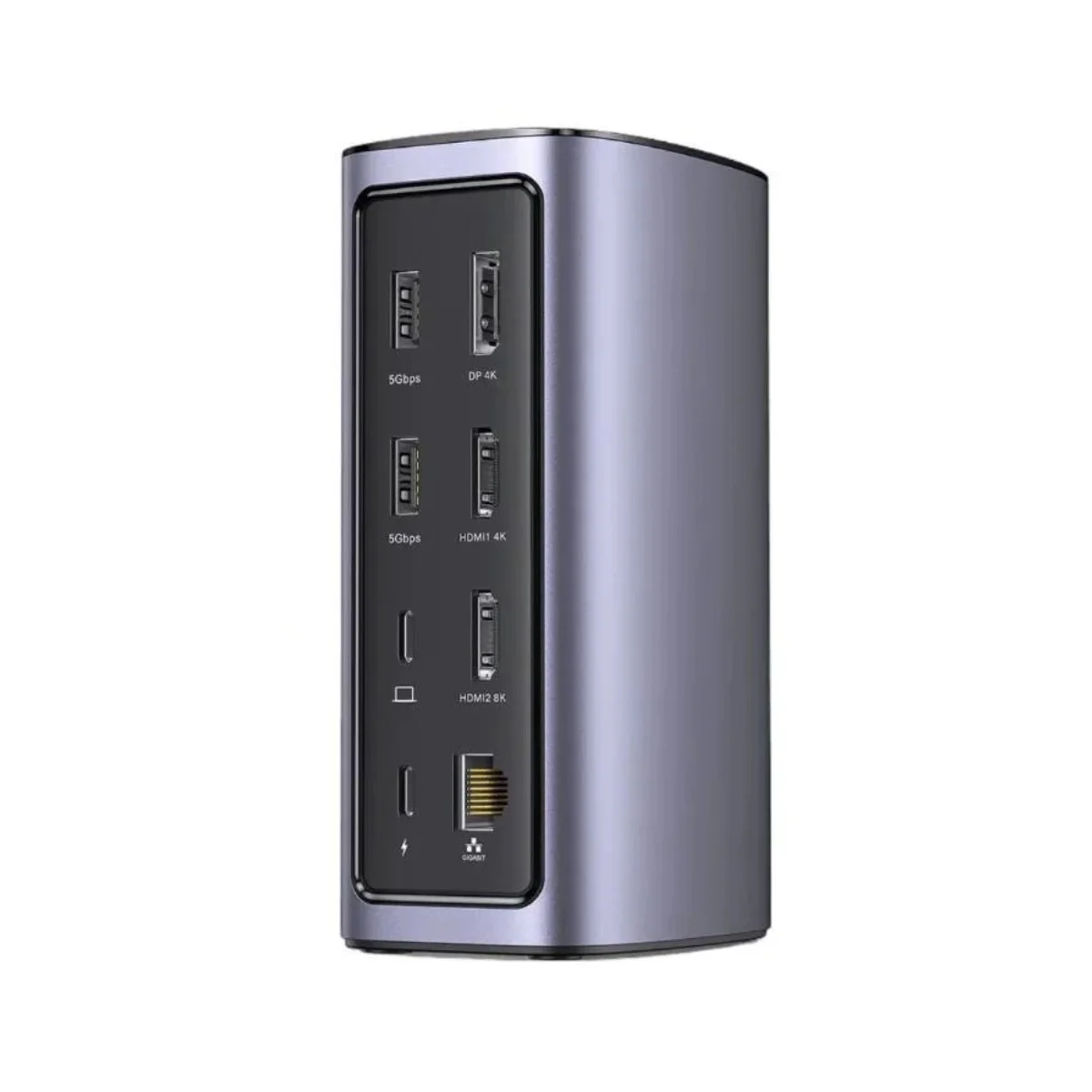

- Total Ports: 12
- USB-A Ports: 2 × USB 3.2 Gen 1
- High-Speed USB Port: 1 × USB-A Gen 2
- USB-C Data Port: 1 × USB-C 3.2 Gen 2
- Video Outputs: 2 × HDMI + 1 × DisplayPort
- Network: RJ45 Gigabit Ethernet
UGREEN 12-in-1 Fast Charge Universal Docking Station Highlights
- 10 Gbps data transfer
- 4K at 60 Hz video output
- 12-in-1 USB-C docking station hub type
- HDMI and DisplayPort outputs video outputs
- USB-C PD Charging manufacturer lists USB-C Power Delivery up to 100W
Compare UGREEN 12-in-1 Fast Charge Universal Docking Station with Similar Products
Compare UGREEN 12-in-1 Fast Charge Universal Docking Station specs, features and price with similar USB hubs and alternatives.
Comparison full
0 spaces availableUSB Hub
| Specification | UGREEN 12-in-1 Fast Charge Universal Docking Station | UGREEN 12-in-1 8K Universal Docking Station | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station | Apple USB Type-C VGA Multiport Adapter |
|---|---|---|---|---|
| Brand / Model | UGREEN Revodok Pro 90325 | UGREEN 12-in-1 8K Universal Docking Station | UGREEN Revodok Pro 313 (15978) | Apple USB-C VGA Multiport Adapter |
| Hub Type | 12-in-1 USB-C docking station | USB-C multifunction docking station | 13-in-1 USB-C docking hub | USB-C multiport adapter for VGA display, USB-A device and laptop charging |
| Host Connection | Not specified | USB-C; video-capable host port required for the 8K HDMI connection | USB-C | USB-C host connector for a Mac with USB-C or Thunderbolt 3 (USB-C) |
| Port Configuration | Not specified | Two HDMI, one DisplayPort, three USB-A data ports, one USB-C data port, one USB-C PD input, RJ45, SD, microSD/TF and 3.5 mm audio | 13 ports: 2 HDMI, DisplayPort, USB-C PD charging, USB-C data, 4 USB-A data ports, Gigabit Ethernet, SD and microSD/TF slots and 3.5mm audio | VGA, USB-A and USB-C charging ports; all three can operate simultaneously |
Data
| Specification | UGREEN 12-in-1 Fast Charge Universal Docking Station | UGREEN 12-in-1 8K Universal Docking Station | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station | Apple USB Type-C VGA Multiport Adapter |
|---|---|---|---|---|
| USB Data | USB 3.2 ports: up to 10Gbps | One USB-A and one USB-C up to 10 Gbit/s; two USB-A up to 5 Gbit/s (theoretical rates) | USB-C and 2 USB-A data ports: up to 10Gbps; 2 additional USB-A ports: up to 5Gbps | USB-A data transfer up to 5Gbps (USB 3.1 Gen 1) |
| Card Reader | Not specified | SD and microSD/TF; SD 3.0, theoretical transfer rate up to 104 MB/s | SD and microSD/TF card slots | Not specified |
| Ethernet | Not specified | RJ45; automatic 10 / 100 / 1000 Mbit/s negotiation | Gigabit Ethernet | Not specified |
Display
| Specification | UGREEN 12-in-1 Fast Charge Universal Docking Station | UGREEN 12-in-1 8K Universal Docking Station | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station | Apple USB Type-C VGA Multiport Adapter |
|---|---|---|---|---|
| Video Outputs | HDMI and DisplayPort outputs | HDMI 1 up to 4K at 60 Hz; HDMI 2 up to 8K at 30 Hz; DisplayPort up to 4K at 60 Hz | 2 HDMI 2.0 and 1 DisplayPort 1.4 outputs | VGA display output |
| Maximum Display Output | HDMI 2: up to 8K at 30Hz on Windows; HDMI 1 and DisplayPort: up to 4K at 60Hz; macOS: up to 4K at 60Hz | HDMI 2 reaches up to 8K at 30 Hz on compatible Windows hosts; macOS HDMI 2 output is limited to 4K at 60 Hz | Up to 4K at 60Hz | Up to 1920 × 1080 at 60Hz |
| Multi-Monitor Support | Not specified | Not specified | Up to 3 external displays | Not specified |
Power
| Specification | UGREEN 12-in-1 Fast Charge Universal Docking Station | UGREEN 12-in-1 8K Universal Docking Station | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station | Apple USB Type-C VGA Multiport Adapter |
|---|---|---|---|---|
| USB-C PD Charging | Manufacturer lists USB-C Power Delivery up to 100W; separate host-output limit is unverified | 1x USB-C PD 3.0 (100W Max) | 100W USB-C PD port; up to 85W pass-through charging | USB-C pass-through charging up to 60W; this port does not support data transfer or video |
| Power Requirements / Notes | Not specified | External USB-C Power Delivery supply recommended for high-power peripherals; compatible host must accept USB-C charging | Separate compatible USB-C PD charger required for laptop charging | Draws power from the connected Mac even while it sleeps; unplug when the Mac is not connected to AC power to reduce battery drain |
Audio & Features
| Specification | UGREEN 12-in-1 Fast Charge Universal Docking Station | UGREEN 12-in-1 8K Universal Docking Station | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station | Apple USB Type-C VGA Multiport Adapter |
|---|---|---|---|---|
| Audio / Hub Features | Not specified | 3.5 mm earphone and microphone combo jack | 3.5mm audio port | Not specified |
Compatibility & Physical
| Specification | UGREEN 12-in-1 Fast Charge Universal Docking Station | UGREEN 12-in-1 8K Universal Docking Station | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station | Apple USB Type-C VGA Multiport Adapter |
|---|---|---|---|---|
| Compatibility / Notes | Windows and macOS; install the appropriate manufacturer driver where required for the display setup | Windows and macOS; DisplayLink driver required for the HDMI 1 and DisplayPort outputs. Host video support required for HDMI 2 | Full-function USB-C host with DisplayPort Alt Mode and USB Power Delivery; display layout depends on host OS | Mac with a USB-C or Thunderbolt 3 (USB-C) port and a VGA display. For best charging on 15/16-inch MacBook Pro, connect its power adapter directly. Incompatible with G-DRIVE mobile USB 3.0 (HF4F2VC/A) and Apple USB SuperDrive manufactured before autumn 2010. |
| Design / Dimensions / Weight | Not specified | Not specified | 145 x 70 x 20mm; 305.6g | Not specified |
General
| Specification | UGREEN 12-in-1 Fast Charge Universal Docking Station | UGREEN 12-in-1 8K Universal Docking Station | UGREEN Revodok Pro 313 13 in 1 USB C Docking Station | Apple USB Type-C VGA Multiport Adapter |
|---|---|---|---|---|
| Brand | UGREEN | UGREEN | UGREEN | Apple |
Specs
UGREEN 12-in-1 Fast Charge Universal Docking Station specifications
USB Hub
| Brand / Model | UGREEN Revodok Pro 90325 |
|---|---|
| Hub Type | 12-in-1 USB-C docking station |
Data
| USB Data | USB 3.2 ports: up to 10Gbps |
|---|
Display
| Video Outputs | HDMI and DisplayPort outputs |
|---|---|
| Maximum Display Output | HDMI 2: up to 8K at 30Hz on Windows; HDMI 1 and DisplayPort: up to 4K at 60Hz; macOS: up to 4K at 60Hz |
Power
| USB-C PD Charging | Manufacturer lists USB-C Power Delivery up to 100W; separate host-output limit is unverified |
|---|
Compatibility & Physical
| Compatibility / Notes | Windows and macOS; install the appropriate manufacturer driver where required for the display setup |
|---|
